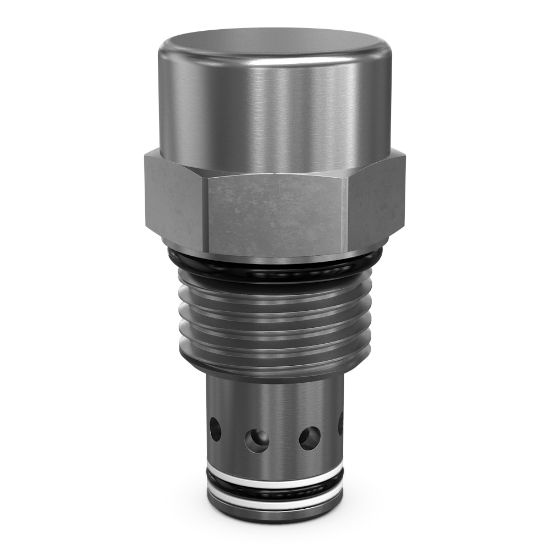

FR101K065V - Pressure Compensated Flow Control Valves

Parker offers a wide range of pressure compensated flow controls for applications that demand constant flow with varying loads and pressures; handling pressures as high as 420 bar (6000 psi) and flows to 56 lpm (15 gpm) in a single common cavity.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU FR101K065V

$107.66/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Fluorocarbon
Adjustment Mechanism	Knob	Standard Flow Rate Setting	N/A
Configuration	Partial Reverse Flow	Maximum Flow Rate	7 GAL/MIN, 26.5 L/MIN
Flow Rate Display Range	0.5-0.8 GAL/MIN, 1.9-3 L/MIN	Maximum Inlet Pressure Rating	245 bar
Function	Flow Control	Connection Size	N/A
Seal Material	Fluorocarbon	Standard Flow Rate Setting	N/A L/min
Connection Type	N/A	Maximum Operating Temperature	+400 °F
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Valve Material	All parts steel. All operating parts hardened steel
Division	Hydraulic Cartridge Systems Division	Maximum Flow Rate	22.5 L/min
Operating Temperature	-26 to +204 °C	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Actuation Type	Pressure Compensated	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Maximum Operating Pressure	245 bar	Configuration	Partial Reverse Flow
Flow Rate Accuracy	30%	Body Material	N/A
Division	Hydraulic Systems Division	Installation Torque	22 (Aluminum), 65 (Steel) Nm
Operation Type	Manually operated	Weight	0.5 lb
Adjustment Mechanism	Knob	Cavity Size	C10-2
Flow Rate Display Range	0.5-0.8 Gal/min	Minimum Operating Temperature	-15 °F
Flow Rate	22.5 L/min
