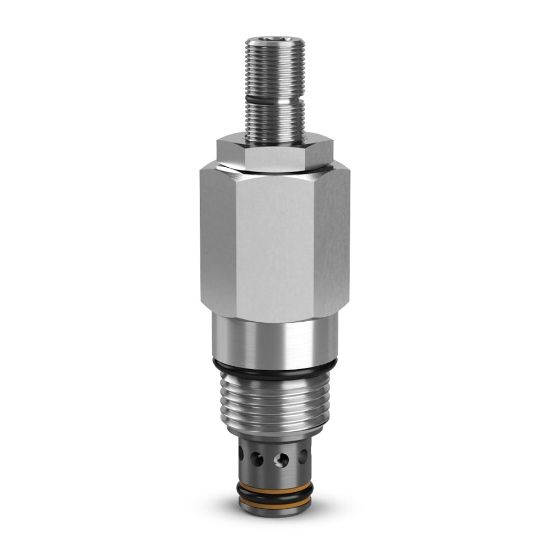

J02E2ZN - Pressure Compensated Flow Control Valves

Name: J02E2ZN - Pressure Compensated Flow Control Valves
SKU: J02E2ZN
Price: 178.60 USD
Availability: InStock

Parker offers a wide range of pressure compensated flow controls for applications that demand constant flow with varying loads and pressures; handling pressures as high as 420 bar (6000 psi) and flows to 56 lpm (15 gpm) in a single common cavity.

Manufacturer: Parker

Availability:

5 in stock

Olivette, MO

Partner Available:

Backordered

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU J02E2ZN

$178.60/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Adjustment Mechanism	Screw	Maximum Flow Rate	5.3 GAL/MIN, 20 L/MIN
Flow Rate Display Range	0.3-5.3 GAL/MIN, 1-20 L/MIN	Standard Flow Rate Setting	2.6 GAL/MIN, 10 L/MIN
Configuration	Reverse Flow	Connection Type	N/A
Standard Flow Rate Setting	2.6 Gal/min	Division	Mobile Hydraulic Systems Division Europe
Operation Type	Manually operated	Maximum Operating Pressure	6000 psi
Installation Torque	40 Nm	Body Material	N/A
Flow Rate Accuracy	N/A	Weight	0.13 kg
Valve Material	All parts steel. All operating parts hardened steel	Seal Material	Nitrile
Connection Size	N/A	Maximum Inlet Pressure Rating	6000 psi
Maximum Flow Rate	20 L/min	Division	Hydraulic Cartridge Systems Division
Maximum Operating Temperature	+121 °C	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Adjustment Mechanism	Screw	Cavity Size	C08-2
Minimum Operating Temperature	-35 °C	Function	Flow Control
Operating Temperature	-35 to +121 °C	Configuration	Reverse Flow
Actuation Type	Pressure Compensated	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Flow Rate	20 L/min
Flow Rate Display Range	0.3-5.3 Gal/min
