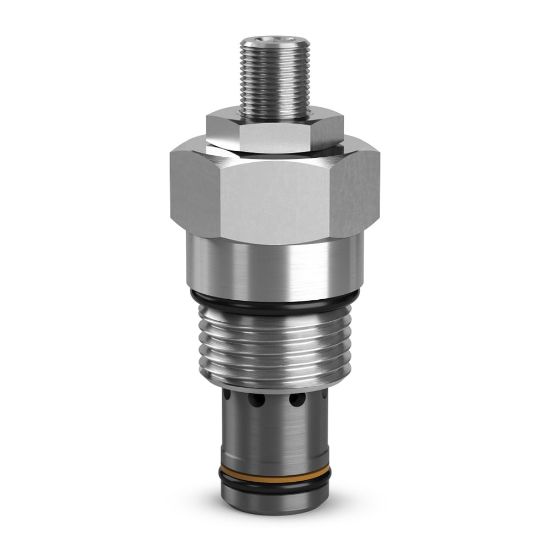

J04C2ZN - Pressure Compensated Flow Control Valves

Parker offers a wide range of pressure compensated flow controls for applications that demand constant flow with varying loads and pressures; handling pressures as high as 420 bar (6000 psi) and flows to 56 lpm (15 gpm) in a single common cavity.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 185 days
Partner Available:	2 Limited Stock

SKU J04C2ZN

$473.83/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Adjustment Mechanism	Screw	Configuration	Partial Reverse Flow
Maximum Flow Rate	10.6 GAL/MIN, 40 L/MIN	Flow Rate Display Range	0.3-10.6 GAL/MIN, 1-40 L/MIN
Standard Flow Rate Setting	5.3 GAL/MIN, 20 L/MIN	Cavity Size	C10-2
Minimum Operating Temperature	-35 °C	Flow Rate Display Range	1-40 L/min
Adjustment Mechanism	Screw	Maximum Operating Pressure	6000 psi
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Configuration	Partial Reverse Flow
Actuation Type	Pressure Compensated	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Operating Temperature	-35 to +121 °C	Flow Rate	10.6 Gal/min
Connection Type	N/A	Standard Flow Rate Setting	20 L/min
Weight	0.15 kg	Installation Torque	50 Nm
Operation Type	Manually operated	Body Material	N/A
Division	Mobile Hydraulic Systems Division Europe	Flow Rate Accuracy	N/A
Function	Flow Control	Seal Material	Nitrile
Connection Size	N/A	Maximum Inlet Pressure Rating	420 bar
Valve Material	All parts steel. All operating parts hardened steel	Maximum Flow Rate	40 L/min
Division	Hydraulic Cartridge Systems Division	Maximum Operating Temperature	+121 °C
For Fluid Type	Mineral-based or synthetic hydraulic fluids
