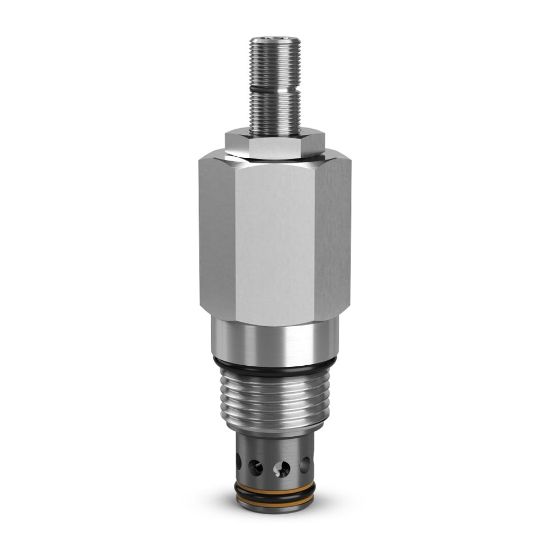

J04E2ZN - Pressure Compensated Flow Control Valves

Name: J04E2ZN - Pressure Compensated Flow Control Valves
SKU: J04E2ZN
Price: 184.48 USD
Availability: InStock

Parker offers a wide range of pressure compensated flow controls for applications that demand constant flow with varying loads and pressures; handling pressures as high as 420 bar (6000 psi) and flows to 56 lpm (15 gpm) in a single common cavity.

Manufacturer: Parker

Availability:

4 in stock

Kansas City, KS	3
Olivette, MO	1

Partner Available:

Backordered

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU J04E2ZN

$184.48/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Adjustment Mechanism	Screw	Maximum Flow Rate	10.6 GAL/MIN, 40 L/MIN
Flow Rate Display Range	0.3-10.6 GAL/MIN, 1-40 L/MIN	Standard Flow Rate Setting	5.3 GAL/MIN, 20 L/MIN
Configuration	Reverse Flow	Flow Rate Display Range	1-40 L/min
Minimum Operating Temperature	-30 °F	Adjustment Mechanism	Screw
Cavity Size	C10-2	Flow Rate Accuracy	N/A
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Weight	0.44 lb
Maximum Operating Pressure	420 bar	Body Material	N/A
Actuation Type	Pressure Compensated	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Configuration	Reverse Flow	Operating Temperature	-30 to +250 °F
Flow Rate	10.6 Gal/min	Maximum Flow Rate	40 L/min
Connection Type	N/A	Standard Flow Rate Setting	20 L/min
Division	Hydraulic Cartridge Systems Division	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Operation Type	Manually operated	Division	Mobile Hydraulic Systems Division Europe
Installation Torque	50 Nm	Connection Size	N/A
Function	Flow Control	Seal Material	Nitrile
Maximum Inlet Pressure Rating	420 bar	Maximum Operating Temperature	+250 °F
Valve Material	All parts steel. All operating parts hardened steel
