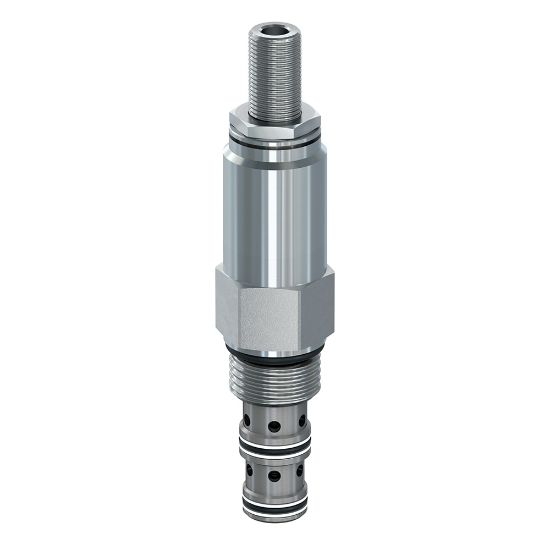

FP101F700 - Pressure Compensated Priority Flow Control Valves

Pressure compensated priority flow control valves maintain constant flow regardless of changes to inlet pressure for flows up to 90 lpm (24 gpm) and pressures up to 420 bar (6000 psi); excess flow is diverted once the priority flow requirement is met.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU FP101F700

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Adjustment Mechanism	Fixed	Maximum Flow Rate	15 GAL/MIN, 56.3 L/MIN
Flow Rate Display Range	N/A	Standard Flow Rate Setting	7 GAL/MIN, 26.3 L/MIN
Adjustment Mechanism	Fixed	Minimum Operating Temperature	-30 °F
Cavity Size	C10-3	Maximum Priority Flow	30 L/min
Flow Rate Display Range	N/A L/min	Seal Material	Nitrile
Valve Material	All parts steel. All operating parts hardened steel	Maximum Inlet Pressure Rating	245 bar
Function	Flow Regulator Valve	Connection Size	N/A
Division	Hydraulic Systems Division	Standard Flow Rate Setting	26.3 L/min
Operation Type	Automatic	Maximum Regulated Flow Rate	N/A L/min
Division	Hydraulic Cartridge Systems Division	Maximum Flow Rate	56.3 L/min
Connection Type	N/A	Maximum Operating Temperature	+121 °C
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Operating Temperature	-30 to +250 °F
Configuration	Priority Flow	Flow Rate	15 Gal/min
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Actuation Type	Pressure Compensated
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Maximum Operating Pressure	3500 psi
Installation Torque	22 Nm	Flow Rate Accuracy	20%
Body Material	N/A	Weight	0.5 lb
