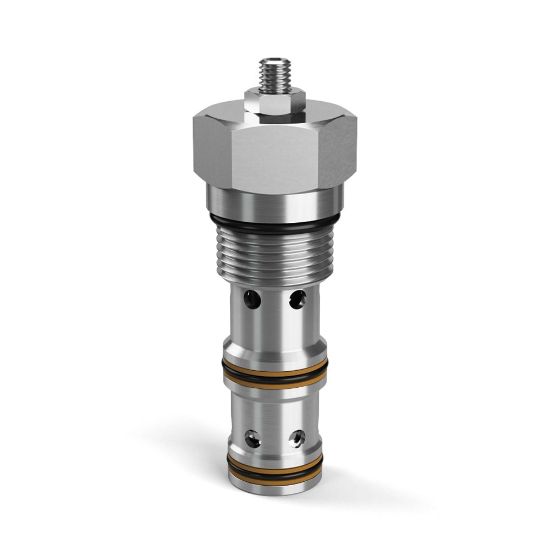

J1A125ZN - Pressure Compensated Priority Flow Control Valves

Pressure compensated priority flow control valves maintain constant flow regardless of changes to inlet pressure for flows up to 90 lpm (24 gpm) and pressures up to 420 bar (6000 psi); excess flow is diverted once the priority flow requirement is met.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 133 days
Partner Available:	7 in stock

SKU J1A125ZN

$518.74/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Adjustment Mechanism	Screw	Flow Rate Display Range	N/A
Maximum Flow Rate	40 GAL/MIN,150 L/MIN	Standard Flow Rate Setting	6.6 GAL/MIN@11.9 GAL/MIN Inlet, 25 L/MIN@45 L/MIN Inlet
Minimum Operating Temperature	-30 °F	Adjustment Mechanism	Screw
Cavity Size	3A	Function	Flow Regulator Valve
Connection Size	N/A	Configuration	Priority Flow
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Operating Temperature	-34 to +121 °C	Flow Rate	150 L/min
Actuation Type	Pressure Compensated	Flow Rate Display Range	N/A L/min
Maximum Priority Flow	N/A L/min	Operation Type	Manually operated
Standard Flow Rate Setting	25 L/MIN@45 L/MIN Inlet L/min	Division	Mobile Hydraulic Systems Division Europe
Installation Torque	63 lb-ft	Flow Rate Accuracy	N/A
Weight	1 lb	Maximum Operating Pressure	5000 psi
Body Material	N/A	Seal Material	Nitrile
Maximum Inlet Pressure Rating	350 bar	Maximum Operating Temperature	+121 °C
Valve Material	All parts steel. All operating parts hardened steel	Maximum Regulated Flow Rate	90 L/min
Division	Hydraulic Cartridge Systems Division	Maximum Flow Rate	150 L/min
Connection Type	N/A	For Fluid Type	Mineral-based or synthetic hydraulic fluids
