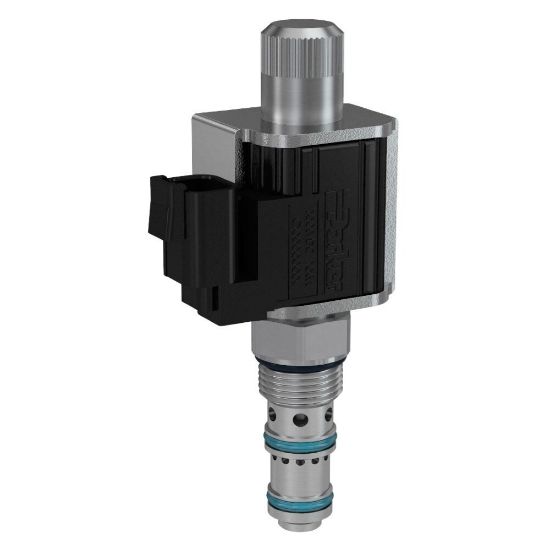

FAPC101N - Pressure Compensated Proportional Poppet Valves

Parker’s family of 2-way proportional poppet valves are available normally-open or normally-closed with a standard integrated pressure compensator; capable of flows up to 83 lpm (22 gpm) and pressures as high as 210 bar (3000 psi).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 133 days
Partner Available:	Backordered

SKU FAPC101N

$867.15/each

Products specifications

Attribute name	Attribute value
UOM	EA	Configuration	Normally Open
Maximum Flow Rate	10 GAL/MIN, 38 L/MIN	Seal Material	D-Ring
Power Consumption	18 W	Cavity Size	3X
Minimum Operating Temperature	-37 °C	Current	Max: 1.5 @ 12 VDC, 0.75 @ 24 VDC A
Flow Rate	10 Gal/min	Maximum Inlet Pressure Rating	210 bar
Connection Size	N/A	Hysteresis	< 10%
Minimum Pressure Differential	34 bar	Seal Material	D-Ring
Valve Material	All parts steel. All operating parts hardened steel	Flow Direction	Top to Side (3 - 2)
Function	Proportional Pressure Compensated Flow Control/Regulator	Division	Hydraulic Systems Division
Operation Type	Solenoid operated	Coil Type	5/8" Super Coil Low Watt (CAS)
Connection Type	N/A	Leak Rate	5 @ 3000 PSI (210 BAR) drops/min
Maximum Operating Temperature	+93 °C	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Frequency	100-400 Hz	Maximum Flow Rate	38 L/min
Division	Hydraulic Cartridge Systems Division	Actuation Type	Electrical
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Operating Temperature	-35 to +200 °F	Coil Nut Tightening Torque	Finger Tight Nm
Configuration	Normally Open	Body Material	N/A
Weight	0.24 kg	Installation Torque	25 lb-ft
Maximum Operating Pressure	3000 psi
