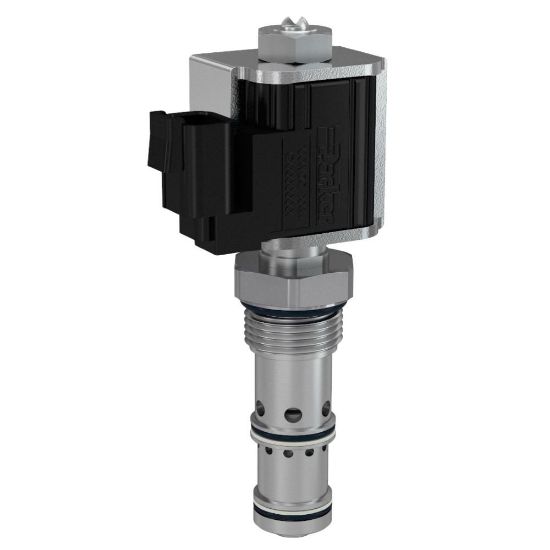

FAPC121CN - Pressure Compensated Proportional Poppet Valves

Parker’s family of 2-way proportional poppet valves are available normally-open or normally-closed with a standard integrated pressure compensator; capable of flows up to 83 lpm (22 gpm) and pressures as high as 210 bar (3000 psi).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 133 days
Partner Available:	Backordered

SKU FAPC121CN

$775.74/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Configuration	Normally Closed	Maximum Flow Rate	15 GAL/MIN, 57 L/MIN
Actuation Type	Electrical	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Operating Temperature	-30 to +250 °F
Coil Nut Tightening Torque	4.1 Nm	Maximum Operating Pressure	210 bar
Configuration	Normally Closed	Body Material	N/A
Division	Hydraulic Systems Division	Weight	0.79 lb
Operation Type	Solenoid operated	Installation Torque	48 Nm
Power Consumption	18 W	Minimum Operating Temperature	-34 °C
Cavity Size	C12-3L	Current	Max: 1.5 @ 12 VDC, 0.75 @ 24 VDC A
Flow Rate	57 L/min	Connection Size	N/A
Maximum Inlet Pressure Rating	3000 psi	Minimum Pressure Differential	500 psi
Seal Material	Nitrile	Flow Direction	Top to Side (3 - 2)
Function	Proportional Pressure Compensated Flow Control/Regulator	Connection Type	N/A
Coil Type	5/8" Super Coil Low Watt (CAS)	Maximum Operating Temperature	+250 °F
Leak Rate	5 @ 3000 PSI (210 BAR) drops/min	Hysteresis	< 10%
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Division	Hydraulic Cartridge Systems Division
Maximum Flow Rate	57 L/min	Frequency	100-400 Hz
Valve Material	All parts steel. All operating parts hardened steel
