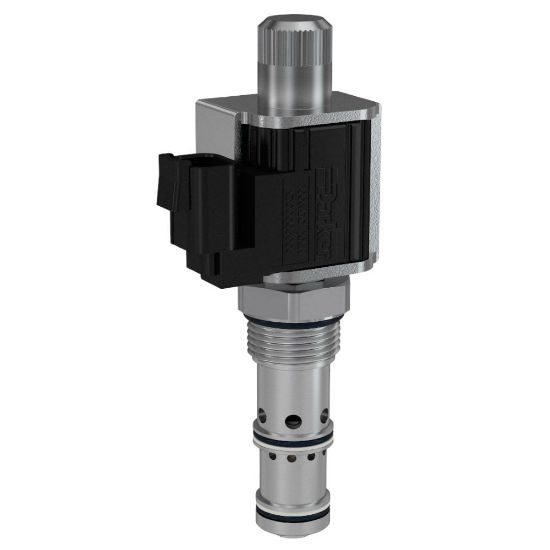

FAPC121NN - Pressure Compensated Proportional Poppet Valves

Parker’s family of 2-way proportional poppet valves are available normally-open or normally-closed with a standard integrated pressure compensator; capable of flows up to 83 lpm (22 gpm) and pressures as high as 210 bar (3000 psi).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 133 days
Partner Available:	Backordered

SKU FAPC121NN

$930.60/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Configuration	Normally Open	Maximum Flow Rate	15 GAL/MIN, 57 L/MIN
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Coil Nut Tightening Torque	Finger Tight Nm	Configuration	Normally Open
Actuation Type	Electrical	Operating Temperature	-30 to +250 °F
Flow Rate	15 Gal/min	Flow Direction	Top to Side (3 - 2)
Function	Proportional Pressure Compensated Flow Control/Regulator	Connection Size	N/A
Minimum Operating Temperature	-30 °F	Cavity Size	C12-3L
Power Consumption	18 W	Current	Max: 1.5 @ 12 VDC, 0.75 @ 24 VDC A
Frequency	100-400 Hz	Maximum Flow Rate	57 L/min
Division	Hydraulic Cartridge Systems Division	Coil Type	5/8" Super Coil Low Watt (CAS)
Connection Type	N/A	Leak Rate	5 @ 3000 PSI (210 BAR) drops/min
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Maximum Operating Temperature	+121 °C
Seal Material	Nitrile	Maximum Inlet Pressure Rating	210 bar
Hysteresis	< 10%	Minimum Pressure Differential	34 bar
Valve Material	All parts steel. All operating parts hardened steel	Weight	0.36 kg
Maximum Operating Pressure	3000 psi	Body Material	N/A
Installation Torque	48 Nm	Operation Type	Solenoid operated
Division	Hydraulic Systems Division
