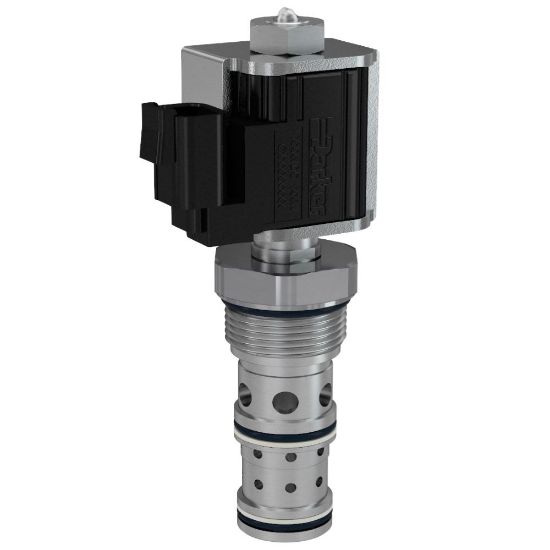

FAPC161CN - Pressure Compensated Proportional Poppet Valves

Parker’s family of 2-way proportional poppet valves are available normally-open or normally-closed with a standard integrated pressure compensator; capable of flows up to 83 lpm (22 gpm) and pressures as high as 210 bar (3000 psi).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 133 days
Partner Available:	Backordered

SKU FAPC161CN

$930.60/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Configuration	Normally Closed	Maximum Flow Rate	22 GAL/MIN, 83 L/MIN
Current	Max: 1.5 @ 12 VDC, 0.75 @ 24 VDC A	Cavity Size	C16-3
Power Consumption	18 W	Minimum Operating Temperature	-34 °C
Hysteresis	< 10%	Seal Material	Nitrile
Valve Material	All parts steel. All operating parts hardened steel	Maximum Operating Temperature	+250 °F
Maximum Inlet Pressure Rating	210 bar	Leak Rate	5 @ 3000 PSI (210 BAR) drops/min
Minimum Pressure Differential	34 bar	Function	Proportional Pressure Compensated Flow Control/Regulator
Flow Direction	Top to Side (3 - 2)	Connection Size	N/A
Division	Hydraulic Systems Division	Installation Torque	80-85 lb-ft
Operation Type	Solenoid operated	Coil Type	5/8" Super Coil Low Watt (CAS)
Division	Hydraulic Cartridge Systems Division	Maximum Flow Rate	83 L/min
Connection Type	N/A	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Frequency	100-400 Hz	Operating Temperature	-30 to +250 °F
Configuration	Normally Closed	Flow Rate	83 L/min
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Coil Nut Tightening Torque	3 lb-ft
Maximum Operating Pressure	210 bar	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Body Material	N/A	Actuation Type	Electrical
Weight	1.08 lb
