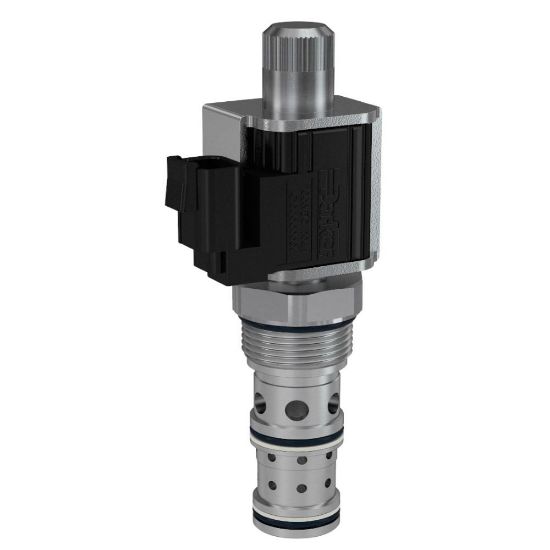

FAPC161NN - Pressure Compensated Proportional Poppet Valves

Parker’s family of 2-way proportional poppet valves are available normally-open or normally-closed with a standard integrated pressure compensator; capable of flows up to 83 lpm (22 gpm) and pressures as high as 210 bar (3000 psi).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 133 days
Partner Available:	Backordered

SKU FAPC161NN

$1,084.76/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Configuration	Normally Open	Maximum Flow Rate	22 GAL/MIN, 83 L/MIN
Maximum Inlet Pressure Rating	210 bar	Function	Proportional Pressure Compensated Flow Control/Regulator
Connection Size	N/A	Flow Direction	Top to Side (3 - 2)
Power Consumption	18 W	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Frequency	100-400 Hz	Connection Type	N/A
Division	Hydraulic Cartridge Systems Division	Coil Type	5/8" Super Coil Low Watt (CAS)
Minimum Pressure Differential	34 bar	Leak Rate	5 @ 3000 PSI (210 BAR) drops/min
Maximum Operating Temperature	+121 °C	Hysteresis	< 10%
Seal Material	Nitrile	Valve Material	All parts steel. All operating parts hardened steel
Maximum Flow Rate	83 L/min	Actuation Type	Electrical
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Operating Temperature	-34 to +121 °C
Configuration	Normally Open	Weight	1.08 lb
Coil Nut Tightening Torque	Finger Tight Nm	Maximum Operating Pressure	3000 psi
Division	Hydraulic Systems Division	Body Material	N/A
Installation Torque	80-85 lb-ft	Operation Type	Solenoid operated
Current	Max: 1.5 @ 12 VDC, 0.75 @ 24 VDC A	Cavity Size	C16-3
Minimum Operating Temperature	-34 °C	Flow Rate	83 L/min
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
