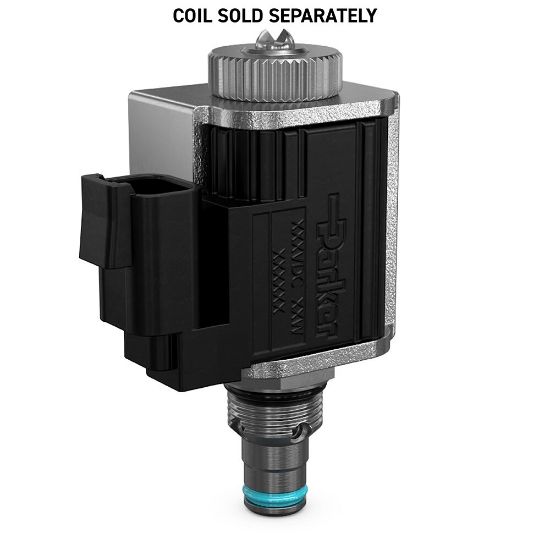

AP02B2YR07AVL - Pressure Relieving Proportional Valve

Parker’s selection of proportional pressure relieving valves are for applications that require dynamic relieving and valves that are capable of flows up to 95 lpm (25 gpm) and pressures as high as 350 bar (5000 psi).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 264 days
Partner Available:	Backordered

SKU AP02B2YR07AVL

$182.60/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Fluorocarbon
Flow Rate	1.4 GAL/MIN, 5.3 L/MIN	Configuration	Decreasing Pressure/Increasing Current
Maximum Relief Pressure	1000 PSI, 70 BAR	Seal Material	Fluorocarbon
Valve Material	Hardened Steel	Maximum Inlet Pressure Rating	350 bar
Hysteresis	< 10 %	Maximum Pressure Setting	n/a
Cracking Pressure	1 psi	Function	Proportional Pressure Relief
Maximum Relief Pressure	70 bar	Flow Direction	Nose to Side (1-2)
Operation Type	Solenoid Operated	Division	Hydraulic Systems Division
Frequency	100 to 400 Hz	Maximum Flow Rate	5.3 L/min
Division	Hydraulic Cartridge Systems Division	Coil Type	5/8" Super Coil High Watt (CAP)
For Fluid Type	Mineral-based Hydraulic Fluids	Maximum Operating Temperature	121 °C
Leak Rate	10	Configuration	Decreasing Pressure/Increasing Current
Coil Nut Tightening Torque	Finger Tight	Actuation Type	Electrical
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Operating Temperature	-26 to 204 °C
Filter Efficiency Rating	SAE Class 4	Weight	0.09 kg
Maximum Operating Pressure	1000 psi	Installation Torque	22 lb-ft
Body Material	n/a	Cavity Size	C08-2
Minimum Operating Temperature	-30 °F	Power Consumption	28 W
Pressure Control Range	n/a	Mounting Type	Screw-in Cartridge
Flow Rate	5.3 L/min
