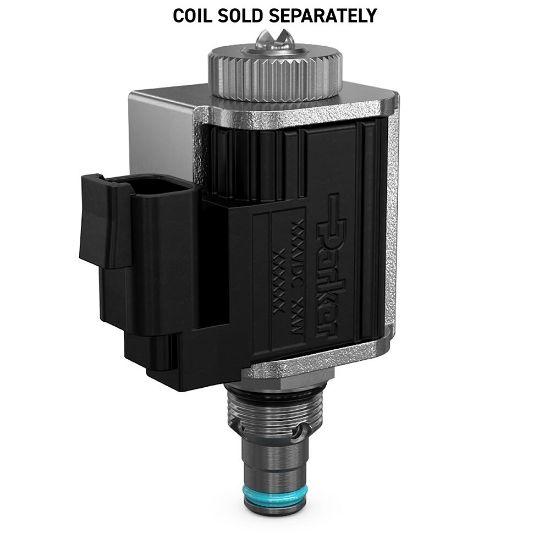

AP02B2YR14AVL - Pressure Relieving Proportional Valve

Parker’s selection of proportional pressure relieving valves are for applications that require dynamic relieving and valves that are capable of flows up to 95 lpm (25 gpm) and pressures as high as 350 bar (5000 psi).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 264 days
Partner Available:	Backordered

SKU AP02B2YR14AVL

$183.07/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Fluorocarbon
Flow Rate	0.9 GAL/MIN, 3.4 L/MIN	Configuration	Decreasing Pressure/Increasing Current
Maximum Relief Pressure	2000 PSI, 140 BAR	Cavity Size	C08-2
Minimum Operating Temperature	-30 °F	Power Consumption	28 W
Pressure Control Range	n/a	Mounting Type	Screw-in Cartridge
Flow Rate	1.4 Gal/min	Seal Material	Fluorocarbon
Valve Material	Steel	Maximum Pressure Setting	n/a
Maximum Inlet Pressure Rating	5000 psi	Hysteresis	< 10 %
Cracking Pressure	2 psi	Function	Proportional Pressure Relief
Maximum Relief Pressure	2000 psi	Flow Direction	Nose to Side (1-2)
Operation Type	Solenoid Operated	Division	Hydraulic Systems Division
Frequency	100 to 400 Hz	Division	Hydraulic Cartridge Systems Division
Coil Type	5/8" Super Coil High Watt (CAP)	Maximum Flow Rate	5.3 L/min
For Fluid Type	Mineral-based Hydraulic Fluids	Leak Rate	n/a
Maximum Operating Temperature	121 °C	Configuration	Decreasing Pressure/Increasing Current
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Coil Nut Tightening Torque	Finger Tight
Actuation Type	Electrical	Filter Efficiency Rating	ISO 4406 18/16/13
Operating Temperature	-15 to 400 °F	Installation Torque	22 lb-ft
Weight	0.09 kg	Maximum Operating Pressure	2000 psi
Body Material	n/a
