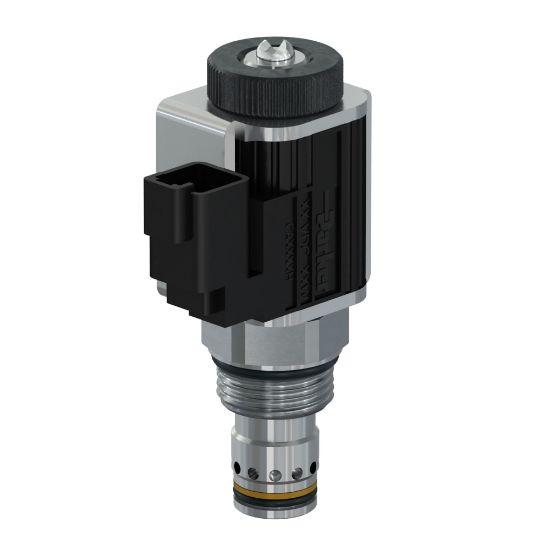

AP04G2YR10CV - Pressure Relieving Proportional Valve

Parker’s selection of proportional pressure relieving valves are for applications that require dynamic relieving and valves that are capable of flows up to 95 lpm (25 gpm) and pressures as high as 350 bar (5000 psi).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 264 days
Partner Available:	Backordered

SKU AP04G2YR10CV

$208.45/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Fluorocarbon
Flow Rate	25 GAL/MIN, 95 L/MIN	Configuration	Decreasing Pressure/Increasing Current
Maximum Relief Pressure	1000 PSI, 70 BAR	Actuation Type	Electrical
Filter Efficiency Rating	ISO 4406 18/16/13	Weight	0.14 kg
Coil Nut Tightening Torque	3 lb-ft	Maximum Operating Pressure	1500 psi
Body Material	n/a	Operation Type	Solenoid Operated
Division	Hydraulic Systems Division	Installation Torque	34 Nm
Minimum Operating Temperature	-15 °F	Mounting Type	Screw-in Cartridge
Flow Rate	25 Gal/min	Configuration	Decreasing Pressure/Increasing Current
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Operating Temperature	-15 to 400 °F
Pressure Control Range	n/a	Function	Proportional Pressure Relief
Flow Direction	Nose to Side (1-2)	Power Consumption	19 W
Maximum Relief Pressure	103 bar	Cavity Size	C10-2
Cracking Pressure	n/a	Frequency	100 to 400 Hz
Division	Hydraulic Cartridge Systems Division	Coil Type	1/2" Super Coil High Watt (CCP)
Maximum Flow Rate	25 Gal/min	For Fluid Type	Synthetic Hydraulic Fluids
Maximum Operating Temperature	204 °C	Seal Material	Fluorocarbon
Maximum Inlet Pressure Rating	350 bar	Leak Rate	5
Maximum Pressure Setting	n/a	Hysteresis	< 7 %
Valve Material	Steel
