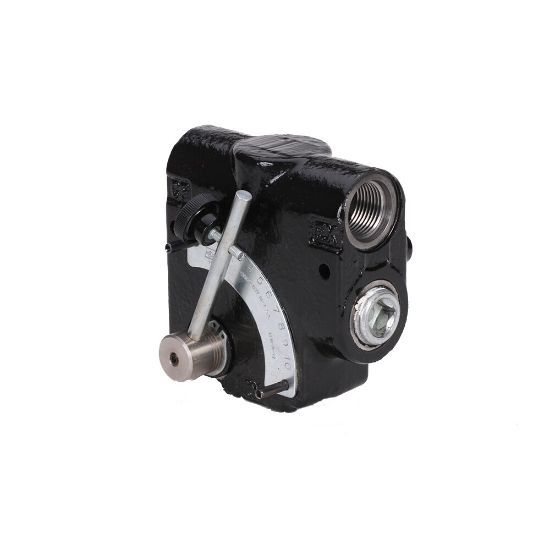

CFQ-A-12-R - Priority Type Flow Control – CFQ Series

Parker’s CFQ Adjustable Flow Divider Valve is designed for providing a Controlled Flow source through one of three optional flow ranges from 0-30 GPM.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 45 days
Partner Available:	Backordered

SKU CFQ-A-12-R

$426.72/each

Products specifications

Attribute name	Attribute value
UOM	EA	Pressure Relief Valve	Adjustable Relief
Port Size	1 1/16"-14 UN-2B	Product Style	Priority Type Flow Control
Minimum Operating Temperature	-20 °F	Actuation Type	Hydraulic Pressure
Weight	3.5 kg	Maximum Operating Pressure	207 bar
Body Material	High Tensile Gray Iron	Division	Hydraulic Valve Systems Division
Maximum Operating Temperature	180 °F	Maximum Flow Rate	35 Gal/min
Seal Material	Nitrile

Product resources

Literature and Reference Materials

Priority Type Flow Control Valve Catalog - CFQ Series (PDF)
