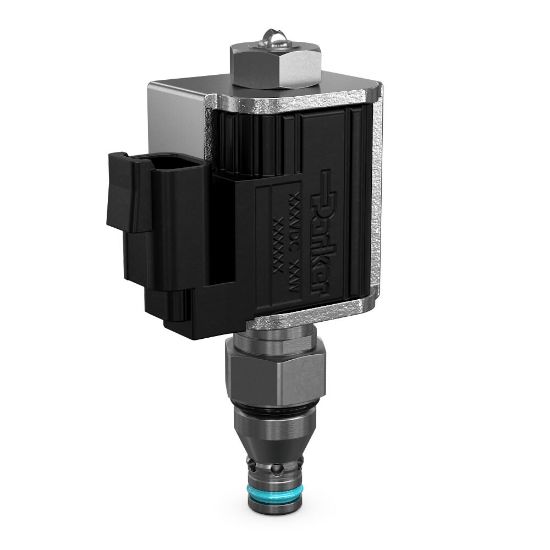

FAP081C - Proportional Poppet Valves

REGIONAL - Parker’s family of 2-way proportional poppet valves are available in normally-open or normally-closed configurations and are capable of flows up to 117 lpm (31 gpm) and pressures as high as 210 bar (3000 psi).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 133 days
Partner Available:	Backordered

SKU FAP081C

$320.54/each

Products specifications

Attribute name	Attribute value
UOM	EA	Configuration	Normally Closed
Seal Material	D-Ring (Standard)	Maximum Flow Rate	7 GAL/MIN, 27 L/MIN
Power Consumption	18 W	Cavity Size	C08-2
Override Functionality	N/A	Minimum Operating Temperature	-35 °F
Minimum Pressure Differential	21 bar	Maximum Operating Temperature	+200 °F
Leak Rate	5 @ 3000 PSI (210 BAR) drops/min	Maximum Inlet Pressure Rating	3000 psi
Hysteresis	< 15%	Seal Material	D-Ring (Standard)
Valve Material	All parts steel. All operating parts hardened steel	Function	Proportional Flow Control/Regulator
Flow Direction	Side to Nose (2 - 1)	Variation of Closing Point	N/A
Division	Hydraulic Systems Division	Installation Torque	30 Nm
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Frequency	100-400 Hz
Division	Hydraulic Cartridge Systems Division	Coil Type	5/8" Super Coil Low Watt (CAS)
Maximum Flow Rate	7 Gal/min	Variation of Opening Point	20-25% of Input Signal
Flow Rate	7 Gal/min	Operating Temperature	-37 to +93 °C
Configuration	Normally Closed	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Body Material	N/A	Actuation Type	Electrical
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Weight	0.17 kg
Maximum Operating Pressure	210 bar	Coil Nut Tightening Torque	1.4 Nm
