*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

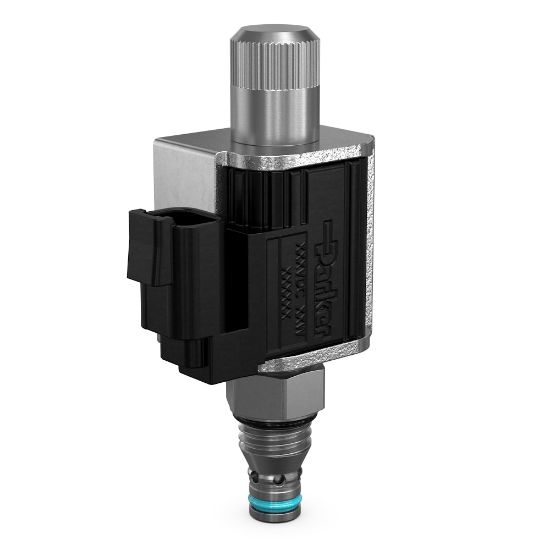

FAP081N - Proportional Poppet Valves

REGIONAL - Parker’s family of 2-way proportional poppet valves are available in normally-open or normally-closed configurations and are capable of flows up to 117 lpm (31 gpm) and pressures as high as 210 bar (3000 psi).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 133 days
Partner Available:	Backordered

SKU FAP081N

$395.98/each

Products specifications

Attribute name	Attribute value
UOM	EA	Configuration	Normally Open
Seal Material	D-Ring (Standard)	Maximum Flow Rate	10.5 GAL/MIN, 40 L/MIN
Variation of Opening Point	N/A	Operating Temperature	-37 to +93 °C
Flow Rate	40 L/min	Actuation Type	Electrical
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Configuration	Normally Open
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Body Material	N/A
Weight	0.48 lb	Maximum Operating Pressure	210 bar
Coil Nut Tightening Torque	1.4 Nm	Power Consumption	18 W
Cavity Size	C08-2	Minimum Operating Temperature	-37 °C
Override Functionality	N/A	Maximum Inlet Pressure Rating	210 bar
Leak Rate	5 @ 3000 PSI (210 BAR) drops/min	Minimum Pressure Differential	300 psi
Hysteresis	< 15%	Maximum Operating Temperature	+200 °F
Valve Material	All parts steel. All operating parts hardened steel	Seal Material	D-Ring (Standard)
Function	Proportional Flow Control/Regulator	Flow Direction	Side to Nose (2 - 1)
Variation of Closing Point	60-65% of Input Signal	Division	Hydraulic Systems Division
Installation Torque	30 Nm	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Frequency	100-400 Hz	Division	Hydraulic Cartridge Systems Division
Coil Type	5/8" Super Coil Low Watt (CAS)	Maximum Flow Rate	40 L/min

Product resources

Literature and Reference Materials
