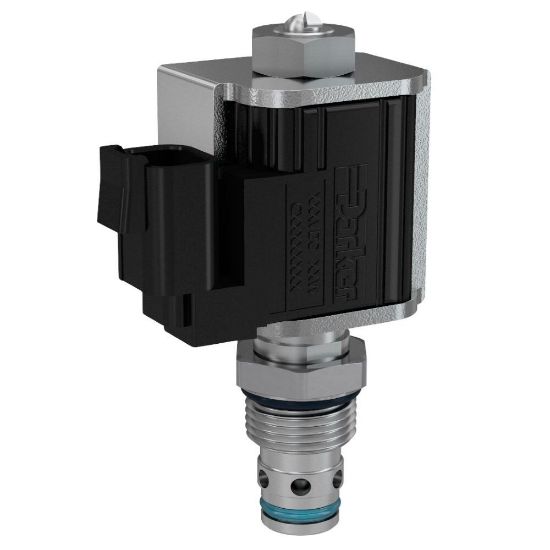

FAP101C - Proportional Poppet Valves

REGIONAL - Parker’s family of 2-way proportional poppet valves are available in normally-open or normally-closed configurations and are capable of flows up to 117 lpm (31 gpm) and pressures as high as 210 bar (3000 psi).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 133 days
Partner Available:	Backordered

SKU FAP101C

$342.40/each

Products specifications

Attribute name	Attribute value
UOM	EA	Configuration	Normally Closed
Seal Material	D-Ring (Standard)	Maximum Flow Rate	10.5 GAL/MIN, 40 L/MIN
Division	Hydraulic Systems Division	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Frequency	100-400 Hz	Coil Type	5/8" Super Coil Low Watt (CAS)
Division	Hydraulic Cartridge Systems Division	Leak Rate	5 @ 3000 PSI (210 BAR) drops/min
Maximum Flow Rate	40 L/min	Operating Temperature	-37 to +93 °C
Variation of Opening Point	20-25% of Input Signal	Flow Rate	10.5 Gal/min
Actuation Type	Electrical	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Coil Nut Tightening Torque	1 lb-ft
Configuration	Normally Closed	Body Material	N/A
Installation Torque	34 Nm	Weight	0.19 kg
Maximum Operating Pressure	3000 psi	Cavity Size	C10-2
Power Consumption	18 W	Minimum Operating Temperature	-37 °C
Override Functionality	N/A	Hysteresis	< 15%
Minimum Pressure Differential	21 bar	Maximum Operating Temperature	+93 °C
Valve Material	All parts steel. All operating parts hardened steel	Seal Material	D-Ring (Standard)
Maximum Inlet Pressure Rating	3000 psi	Flow Direction	Side to Nose (2 - 1)
Function	Proportional Flow Control/Regulator	Variation of Closing Point	N/A
