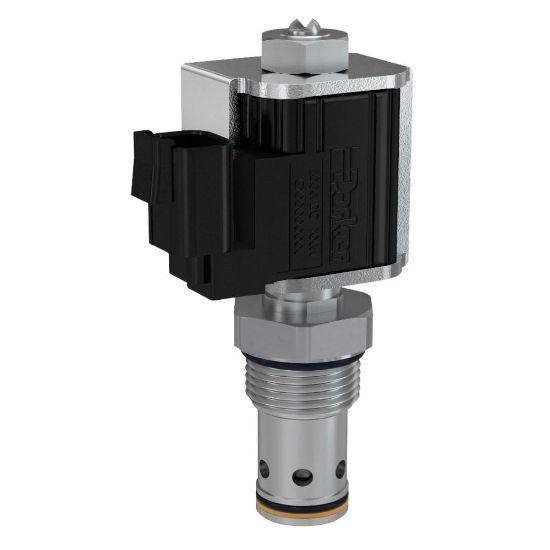

FAP121CV - Proportional Poppet Valves

REGIONAL - Parker’s family of 2-way proportional poppet valves are available in normally-open or normally-closed configurations and are capable of flows up to 117 lpm (31 gpm) and pressures as high as 210 bar (3000 psi).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 133 days
Partner Available:	Backordered

SKU FAP121CV

$406.55/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Fluorocarbon
Configuration	Normally Closed	Maximum Flow Rate	21.5 GAL/MIN, 81.5 L/MIN
Function	Proportional Flow Control/Regulator	Variation of Closing Point	N/A
Maximum Inlet Pressure Rating	3000 psi	Power Consumption	18 W
Flow Direction	Side to Nose (2 - 1)	Coil Type	5/8" Super Coil Low Watt (CAS)
Division	Hydraulic Cartridge Systems Division	Frequency	100-400 Hz
Seal Material	Fluorocarbon	Valve Material	All parts steel. All operating parts hardened steel
Maximum Flow Rate	21.5 Gal/min	Leak Rate	5 @ 3000 PSI (210 BAR) drops/min
Maximum Operating Temperature	+400 °F	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Hysteresis	< 15%	Minimum Pressure Differential	300 psi
Operating Temperature	-26 to +204 °C	Coil Nut Tightening Torque	1.4 Nm
Configuration	Normally Closed	Maximum Operating Pressure	210 bar
Actuation Type	Electrical	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Installation Torque	74 Nm	Body Material	N/A
Division	Hydraulic Systems Division	Weight	0.65 lb
Cavity Size	C12-2F	Minimum Operating Temperature	-15 °F
Override Functionality	N/A	Variation of Opening Point	20-25% of Input Signal
Flow Rate	21.5 Gal/min	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
