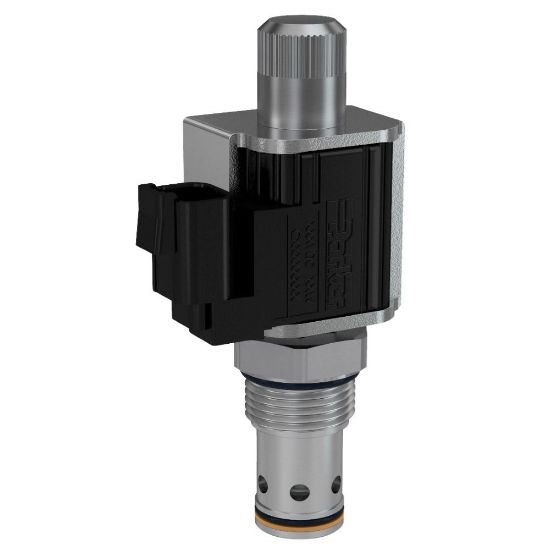

FAP121NN - Proportional Poppet Valves

REGIONAL - Parker’s family of 2-way proportional poppet valves are available in normally-open or normally-closed configurations and are capable of flows up to 117 lpm (31 gpm) and pressures as high as 210 bar (3000 psi).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 133 days
Partner Available:	Backordered

SKU FAP121NN

$470.00/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Configuration	Normally Open	Maximum Flow Rate	26 GAL/MIN, 98.5 L/MIN
Flow Rate	26 Gal/min	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Configuration	Normally Open	Operating Temperature	-30 to +250 °F
Coil Nut Tightening Torque	1.4 Nm	Variation of Opening Point	N/A
Actuation Type	Electrical	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Maximum Operating Pressure	210 bar	Weight	0.68 lb
Body Material	N/A	Minimum Operating Temperature	-30 °F
Cavity Size	C12-2F	Power Consumption	18 W
Override Functionality	N/A	Leak Rate	5 @ 3000 PSI (210 BAR) drops/min
Seal Material	Nitrile	Minimum Pressure Differential	300 psi
Maximum Inlet Pressure Rating	210 bar	Hysteresis	< 15%
Maximum Operating Temperature	+250 °F	Valve Material	All parts steel. All operating parts hardened steel
Variation of Closing Point	60-65% of Input Signal	Flow Direction	Side to Nose (2 - 1)
Function	Proportional Flow Control/Regulator	Division	Hydraulic Systems Division
Installation Torque	55 lb-ft	Frequency	100-400 Hz
Maximum Flow Rate	98.5 L/min	Division	Hydraulic Cartridge Systems Division
Coil Type	5/8" Super Coil Low Watt (CAS)	For Fluid Type	Mineral-based or synthetic hydraulic fluids
