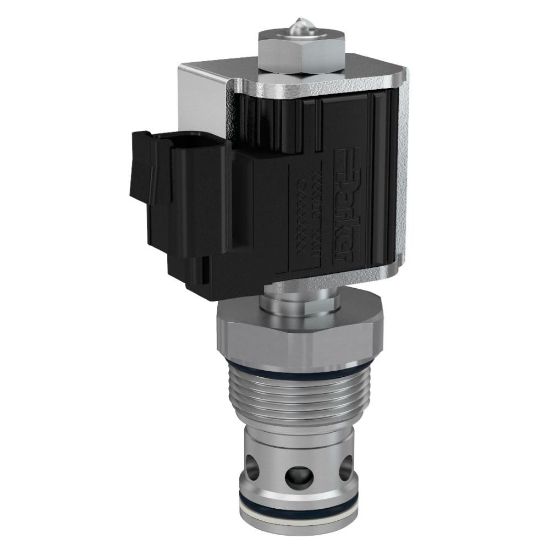

FAP161CV - Proportional Poppet Valves

REGIONAL - Parker’s family of 2-way proportional poppet valves are available in normally-open or normally-closed configurations and are capable of flows up to 117 lpm (31 gpm) and pressures as high as 210 bar (3000 psi).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 133 days
Partner Available:	Backordered

SKU FAP161CV

$459.19/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Fluorocarbon
Configuration	Normally Closed	Maximum Flow Rate	28 GAL/MIN, 106 L/MIN
Division	Hydraulic Systems Division	Frequency	100-400 Hz
Leak Rate	5 @ 3000 PSI (210 BAR) drops/min	Division	Hydraulic Cartridge Systems Division
Coil Type	5/8" Super Coil Low Watt (CAS)	Maximum Flow Rate	28 Gal/min
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Flow Rate	28 Gal/min
Actuation Type	Electrical	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Configuration	Normally Closed	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Coil Nut Tightening Torque	1.4 Nm	Operating Temperature	-26 to +204 °C
Variation of Opening Point	20-25% of Input Signal	Weight	0.4 kg
Maximum Operating Pressure	3000 psi	Body Material	N/A
Installation Torque	80-85 lb-ft	Power Consumption	18 W
Minimum Operating Temperature	-15 °F	Cavity Size	C16-2
Override Functionality	N/A	Maximum Operating Temperature	+204 °C
Seal Material	Fluorocarbon	Minimum Pressure Differential	300 psi
Maximum Inlet Pressure Rating	3000 psi	Hysteresis	< 15%
Valve Material	All parts steel. All operating parts hardened steel	Variation of Closing Point	N/A
Function	Proportional Flow Control/Regulator	Flow Direction	Side to Nose (2 - 1)
