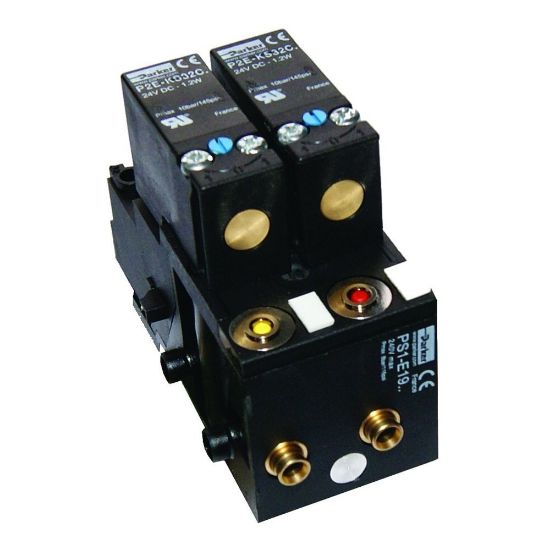

PS1E111

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	2 Limited Stock

SKU PS1E111

$86.43/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Series	Electro-Pneumatic Module
Material	Glass Filled Polyamide	Function	3/2 Way Normally Closed
Number of Positions	2	Media	Air
Port Size	4mm	Seal Material	Poppet: Polyurethane, Seals: Nitrile (Buna N)
Actuation Type	Solenoid Air Operated	Pressure Rating	3 to 8.2 bar
Electrical Connection	Terminal Strip	Lubricant	Lubricated or Non-Lubricated Air
Mounting Option	Stacking	Number of Ports	3
Port Type	Tube Push-In Connections, Push-in Ã˜ 4mm	Minimum Flow Rate	0.14 Cv
Override Functionality	Non-Locking and Locking Manual Overrides	Input Voltage	12 to 48 VDC, 120/240 VAC
Power Consumption	1.2 W, 1.6 VA	Minimum Operating Pressure	40 psig
