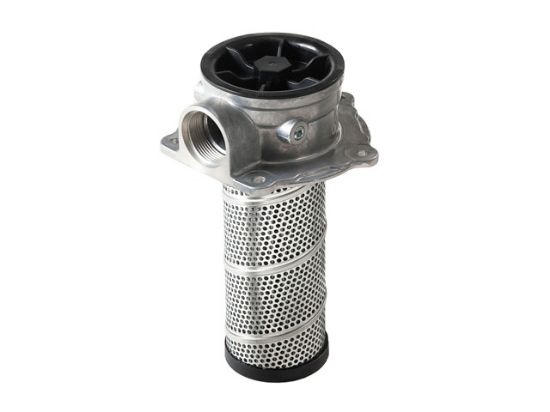

PT4210QBPGN161 - PT4 Series Low Pressure Filter

PT4 Series Hydraulic and Lube Oil Low Pressure Filter

Availability:	Backordered Estimated Lead Time: 21 days
Partner Available:	Backordered

SKU PT4210QBPGN161

Products specifications

Attribute name	Attribute value
UOM	EA	Nominal Flow Rating	30 GPM (114 LPM)
Bypass	25 PSI (1.7 bar)	Replacement Element	936748
Max Pressure - Non-Fatigue MAOP	150 psi (10.3 bar)	UOM	EA
Pkg Qty	1	Indicator Type	Plugged Indicator
Operating Temperature	-40F to 225F (-40C to 107C)	Nominal Filter Rating	10 micron
Element Length	Double	Port	1 NPT
Seals	Nitrile	Options	No Option
Bypass	25 PSI (1.7 bar)	Filter Media Code	10Q
Parker Division	Hydraulic Filter	Seals	Nitrile
Indicator Type	Plugged Indicator	Element Length	Double
Max Pressure - Non-Fatigue MAOP	150 PSI (10.3 bar)	Port	1 NPT
Operating Temperature	-40F to 225F (-40C to 107C)	Parker Group	Filtration
Port Type	NPT	Nominal Filter Micron Rating	10 micron
Filter Media Type	Microglass III	Filter Type	Low Pressure Filter
Series	PT4	Nominal Flow Rating	30 GPM (114 LPM)
Options	No Option

Product resources

PT Series (PDF)
