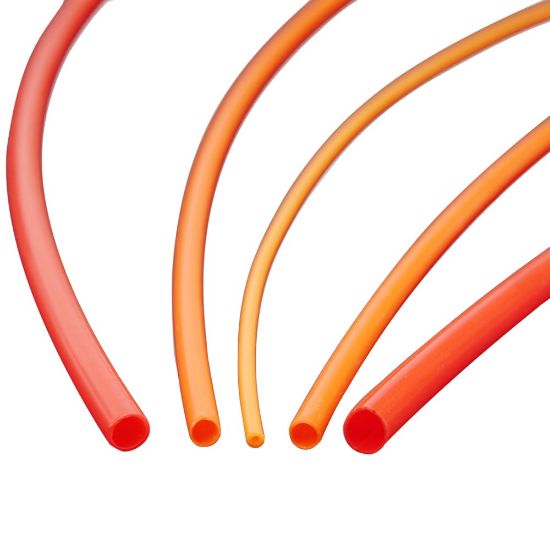

TFS10-NT - PTFE AWG Tubing

PTFE AWG (American Wire Gauge) Tubing is designed for electrical insulation applications that require high-temperature resistance (withstands soldering), chemical and abrasion resistance.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 20 days
Partner Available:	Backordered

SKU TFS10-NT

Products specifications

Attribute name	Attribute value
UOM	FT	Order Size	AWG10 Standard Wall
Tube Wall Thickness	0.016	Product Type	AWG
Tube Inside Diameter	0.106	Standard Pack Qty (ft)	500 ft. spool
Maximum Operating Temperature	260 °C	Size	AWG 10
Length per Package	500 ft Spool	Compatible Fitting	TrueSeal™
Media	Water	Tube Material	Polytetrafluoroethylene (PTFE)
Color	Natural (colors available upon request)	Tube Inside Diameter	0.106 inch
Minimum Operating Temperature	-100 °F	Tube Outside Diameter	3.5 mm
Application	Electrical Insulation	Specifications Met	FDA 21 CFR 177.1550
Weight	0.0085 kg/m
