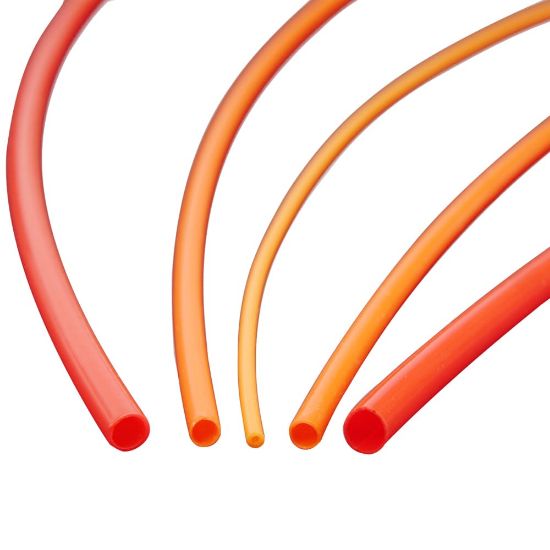

TFT18-NT - PTFE AWG Tubing

PTFE AWG (American Wire Gauge) Tubing is designed for electrical insulation applications that require high-temperature resistance (withstands soldering), chemical and abrasion resistance.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 20 days
Partner Available:	Backordered

SKU TFT18-NT

Products specifications

Attribute name	Attribute value
UOM	FT	Order Size	AWG18 Thin Wall
Standard Pack Qty (ft)	1,000 ft. spool	Tube Inside Diameter	0.042
Product Type	AWG	Tube Wall Thickness	0.012
Length per Package	1000 ft Spool	Size	AWG 18
Compatible Fitting	n/a	Maximum Operating Temperature	500 °F
Tube Material	Polytetrafluoroethylene (PTFE)	Media	Hydraulic Fluids (High Temperature)
Minimum Operating Temperature	-75 °C	Color	Natural (colors available upon request)
Tube Inside Diameter	0.042 inch	Specifications Met	AMS 3655
Application	Fluid Handling	Tube Outside Diameter	0.066 inch
Weight	0.0019 lb/ft
