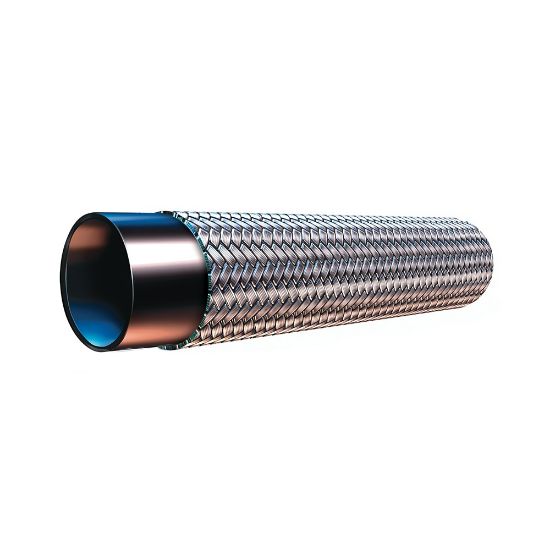

919-20 - PTFE Hose - 919 Series

Name: 919-20 - PTFE Hose - 919 Series
SKU: 919-20
Price: 49.55 USD
Availability: InStock

PTFE hoses feature superior chemical compatibility, resist moisture, perform in a wide temperature range and offer a low coefficient of friction to assist with flow. Most 919 hoses handle temperatures up to 450°F.

Manufacturer: Parker

Availability:

17 in stock

Olivette, MO

Partner Available:

60 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 919-20

$49.55/foot

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Size	-20
Length	Random	Hose Type	SS Braid, Natural
Division	Parflex Division	Size	-20
Media	Industrial Fluids	Product Type	PTFE Hose
Design Factor	4:1	Maximum Operating Temperature	232 °C
Compatible Fitting	90 Series	Hose Inner Tube Material	Natural
Application	Medical Gases	Hose Reinforcement Material	Braid of Stainless Steel
Specifications Met	SAE 100R1, Type 4A	Product Style	Smoothbore
Minimum Bend Radius	406 mm	Minimum Operating Temperature	-100 °F
Cover Material	n/a	Inside Diameter	29 mm
Maximum Operating Pressure	43 bar	Vacuum Pressure Rating	10 Inch-Hg
Weight	0.58 lb/ft	Outside Diameter	1.320 inch
