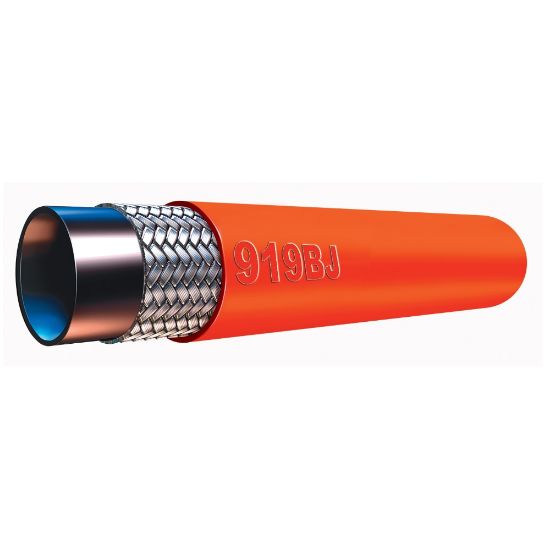

919BJ-8-ORG - PTFE Hose - 919 Series

PTFE hoses feature superior chemical compatibility, resist moisture, perform in a wide temperature range and offer a low coefficient of friction to assist with flow. Most 919 hoses handle temperatures up to 450°F.

Manufacturer: Parker

Availability:	Backordered
Partner Available:	Backordered

SKU 919BJ-8-ORG

$65.77/foot

Products specifications

Attribute name	Attribute value
UOM	FT	Size	-8
Length	Random	Hose Type	Silicone Jacket, Static Dissipative
Inside Diameter	13/32 inch	Maximum Operating Pressure	2000 psi
Outside Diameter	17.3 mm	Application	Cooling Lines
Specifications Met	SAE 100R1, Type 4B	Division	Parflex Division
Vacuum Pressure Rating	28 Inch-Hg	Weight	0.30 kg/m
Media	Petroleum Hydraulic Fluids	Product Type	PTFE Hose
Design Factor	4:1	Size	-8
Compatible Fitting	91N Series	Maximum Operating Temperature	232 °C
Hose Inner Tube Material	Polytetrafluoroethylene (PTFE) Static Dissipative	Minimum Bend Radius	127 mm
Minimum Operating Temperature	-40 °F	Hose Reinforcement Material	Braid of Stainless Steel
Product Style	Smoothbore	Cover Material	Extruded Silicone
