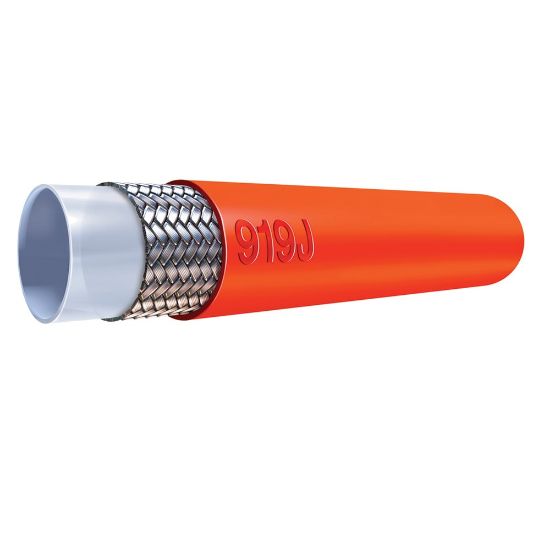

919J-10-RED - PTFE Hose - 919 Series

PTFE hoses feature superior chemical compatibility, resist moisture, perform in a wide temperature range and offer a low coefficient of friction to assist with flow. Most 919 hoses handle temperatures up to 450°F.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	58 in stock

SKU 919J-10-RED

$35.29/foot

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Size	-10
Length	Random	Hose Type	Silicone Jacket, Natural
Media	Petroleum Hydraulic Fluids	Design Factor	4:1
Product Type	PTFE Hose	Maximum Operating Temperature	232 °C
Compatible Fitting	91N Series	Hose Inner Tube Material	Polytetrafluoroethylene (PTFE)
Minimum Operating Temperature	-40 °F	Minimum Bend Radius	165 mm
Product Style	Smoothbore	Hose Reinforcement Material	Braid of Stainless Steel
Specifications Met	FDA 21 CFR 177.1550	Cover Material	Extruded Silicone
Maximum Operating Pressure	1500 psi	Weight	0.35 kg/m
Inside Diameter	1/2 inch	Outside Diameter	19.8 mm
Vacuum Pressure Rating	28 Inch-Hg	Application	High Temperature Applications
Size	-10	Division	Parflex Division
