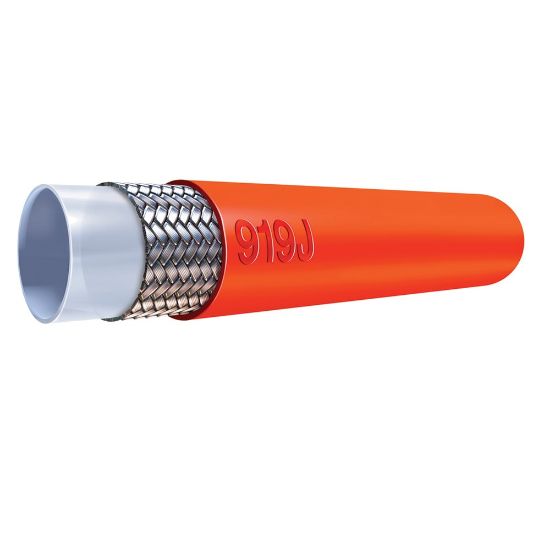

919J-4-RED - PTFE Hose - 919 Series

PTFE hoses feature superior chemical compatibility, resist moisture, perform in a wide temperature range and offer a low coefficient of friction to assist with flow. Most 919 hoses handle temperatures up to 450°F.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	238 in stock

SKU 919J-4-RED

$22.22/foot

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Size	-4
Length	Random	Hose Type	Silicone Jacket, Natural
Minimum Bend Radius	2 inch	Product Style	Smoothbore
Specifications Met	FDA 21 CFR 177.1550	Minimum Operating Temperature	-40 °F
Hose Reinforcement Material	Braid of Stainless Steel	Cover Material	Extruded Silicone
Inside Diameter	3/16 inch	Weight	0.18 kg/m
Maximum Operating Pressure	3000 psi	Vacuum Pressure Rating	28 Inch-Hg
Outside Diameter	11.4 mm	Application	Adhesive Dispensing
Size	-4	Division	Parflex Division
Media	Water	Design Factor	4:1
Product Type	PTFE Hose	Compatible Fitting	91N Series
Maximum Operating Temperature	450 °F	Hose Inner Tube Material	Natural
