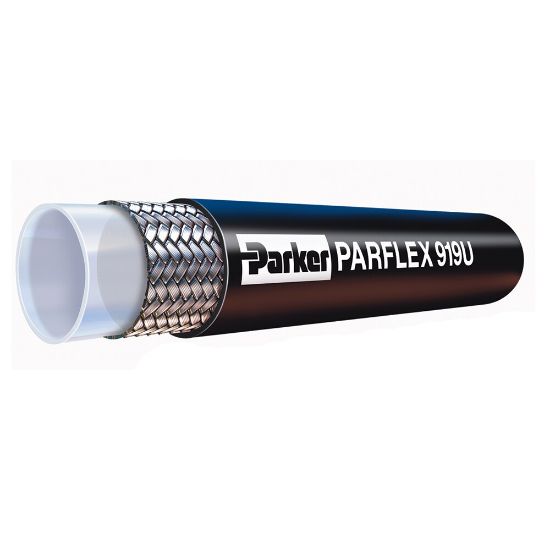

919U-6 - PTFE Hose - 919 Series

PTFE hoses feature superior chemical compatibility, resist moisture, perform in a wide temperature range and offer a low coefficient of friction to assist with flow. Most 919 hoses handle temperatures up to 450°F.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	1023 in stock

SKU 919U-6

$20.63/foot

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Size	-6
Length	Random	Hose Type	Polyurethane Jacket, Natural
Inside Diameter	8 mm	Maximum Operating Pressure	17.2 MPa
Outside Diameter	13 mm	Vacuum Pressure Rating	711 mm-Hg
Weight	0.20 kg/m	Compatible Fitting	91N Series
Maximum Operating Temperature	275 °F	Hose Inner Tube Material	Natural
Division	Parflex Division	Size	-6
Cover Material	Polyurethane	Media	Water
Product Type	PTFE Hose	Design Factor	4:1
Application	Marine	Minimum Operating Temperature	-40 °C
Minimum Bend Radius	102 mm	Specifications Met	SAE 100R1, Type 4A
Hose Reinforcement Material	Braid of Stainless Steel	Product Style	Smoothbore
