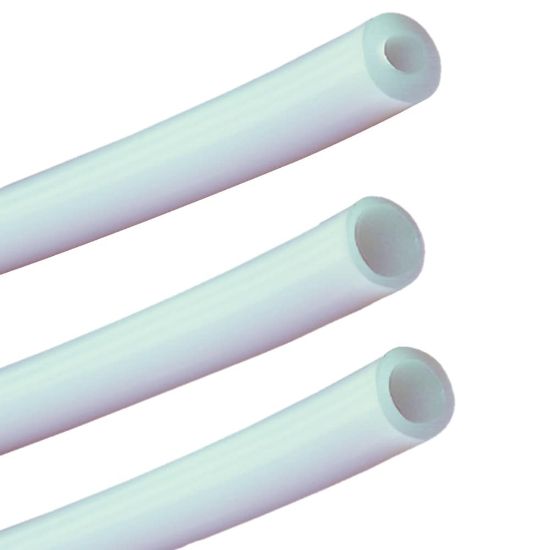

101-1100050-NT-100 - PTFE Tubing

PTFE Tubing – Series 101/201 is a high temperature tubing operating up to 500°F/260°C. Fluoroplastic tubing is chemically inert, corrosion resistant, and features the lowest coefficient of friction of any tubing.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	Backordered

SKU 101-1100050-NT-100

$20.17/foot

Products specifications

Attribute name	Attribute value
UOM	FT	Product Type	Industrial Wall
Standard Pack Qty (ft)	100.0	Order Size	1.100
Tube Wall Thickness	0.050	Tube Inside Diameter	1
Tube Outside Diameter	1.1	Division	Parflex Division
Application	Semiconductor	Media	Water
Maximum Operating Pressure	40 psi	Maximum Operating Temperature	260 °C
Minimum Operating Temperature	-100 °F	Specifications Met	FDA compliant 21 CFR 177.1550
Weight	0.231 kg/m	Color	Natural
Tube Material	Polytetrafluoroethylene (PTFE)	Size	1.100 inch
Compatible Fitting	Compression	Minimum Bend Radius	457 mm
Tube Outside Diameter	27.94 mm	Length per Package	100 ft
Tube Inside Diameter	25.4 mm	Minimum Burst Pressure	160 psi
