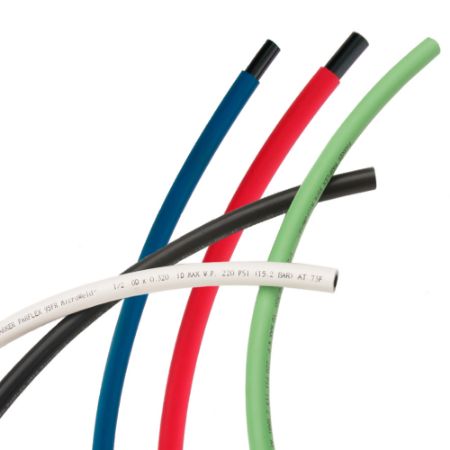

PU Tubing - Flame Resistant

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

The 95FR Series Weld Spatter Resistant Tubing is lightweight and extremely flexible. It is an ideal option for low to medium pressure air and water supply lines where weld spatter protection is required. The double wall design has a flame resistant jacket made from a material that meets the UL94 V-0 standard and the tubing offers excellent hydrolytic stability, ensuring the tube will not degrade when used in water based applications. Parflex 95FR tubing is available in multiple colors for easy line identification.

Markets:
• Industrial

Features/Benefits:
• UL-94 V0 Flame resistant jacket material
• Exellent flexibility
• Abrasion resistant
• Moisture resistant
• Weld Spatter resistant
• Grease and Oil resistant
• Silicone and Halogen free

Applications:
• Pneumatic Systems
• Robotic Welding
• End-of-Arm Tooling
• General Robotics
• General Automation

Technical Specifications:
• Working and burst pressures rated at 73°F /23°C

View as Grid List

Sort by

Display per page

SKU	Availability	Partner Available	Price	UOM	Order Size	Product Type	Standard Pack Qty (ft)	Color	Tube Outside Diameter	Application	Diameter	Minimum Burst Pressure	Product Type	Tube Material	Tube Inside Diameter	Minimum Bend Radius	Minimum Operating Temperature	Cover Material	Length per Package	Division	Cover Thickness	Maximum Operating Temperature	Compatible Fitting	Weight	Maximum Operating Pressure	Cover Color
95FR-4-BLK-0250	Backordered	Backordered	POR	FT	-4	Inch	250.0	Black	6.4 mm	Robotics	0.340 inch	720 psi	Fractional	Polyurethane	3.0 mm	3/4 inch	-40 °F	Proprietary Material	250 ft	Parflex Division	0.045 inch	75 °C	68PLM	0.042 lb/ft	240 psi	Black
95FR-4-BLK-0500	Backordered	Backordered	POR	FT	-4	Inch	500.0	Black	6.4 mm	Robotics	0.340 inch	5.0 MPa	Fractional	Polyurethane	0.160 inch	3/4 inch	-40 °F	Proprietary Material	500 ft	Parflex Division	0.045 inch	165 °F	68PLM	0.042 lb/ft	16.5 bar	Black
95FR-4-BLU-0250	Backordered	Backordered	POR	FT	-4	Inch	250.0	Blue	1/4 inch	Pneumatic Systems	0.340 inch	720 psi	Fractional	Polyurethane	3.0 mm	3/4 inch	-40 °C	Proprietary Material	250 ft	Parflex Division	0.045 inch	165 °F	68PLM	0.062 kg/m	1.65 MPa	Blue
95FR-4-RED-0500	Backordered	Backordered	POR	FT	-4	Inch	500.0	Red	1/4 inch	Pneumatic Systems	8.6 mm	5.0 MPa	Fractional	Polyurethane	0.160 inch	19 mm	-40 °F	Proprietary Material	500 ft	Parflex Division	0.045 inch	165 °F	68PLM	0.042 lb/ft	240 psi	Red
95FR-4-WHT-0250	Backordered	Backordered	POR	FT	-4	Inch	250.0	White	6.4 mm	Welding	8.6 mm	50 bar	Fractional	Polyurethane	3.0 mm	3/4 inch	-40 °F	Proprietary Material	250 ft	Parflex Division	0.045 inch	165 °F	68PLM	0.042 lb/ft	240 psi	White
95FR-4-WHT-0500	Backordered	Backordered	POR	FT	-4	Inch	500.0	White	6.4 mm	Welding	0.340 inch	50 bar	Fractional	Polyurethane	3.0 mm	3/4 inch	-40 °C	Proprietary Material	500 ft	Parflex Division	0.045 inch	75 °C	68PLM	0.042 lb/ft	1.65 MPa	White
95FR-6-WHT-0500	Backordered	Backordered	POR	FT	-6	Inch	500.0	White	3/8 inch	Pneumatic Systems	11.8 mm	48 MPa	Fractional	Polyurethane	0.250 inch	25.5 mm	-40 °F	Proprietary Material	500 ft	Parflex Division	0.045 inch	165 °F	68PLM	0.103 kg/m	1.65 MPa	White
