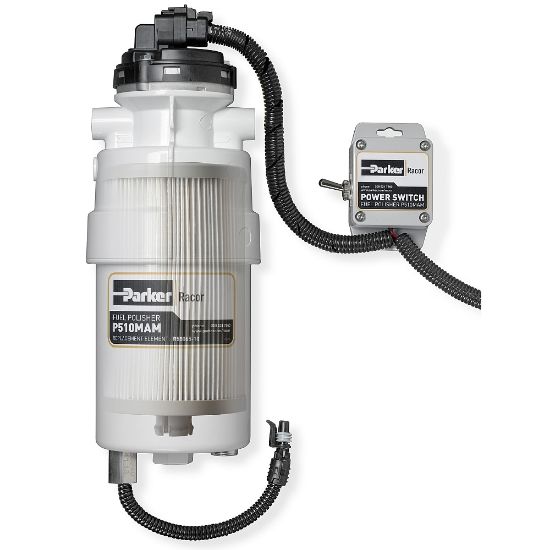

P510MAM - Pump and Filter Fuel Polishing System – Racor P510MAM Series

Name: P510MAM - Pump and Filter Fuel Polishing System – Racor P510MAM Series
SKU: P510MAM
Price: 1225.37 USD
Availability: InStock

The Racor P510MAM Series Pump and Filter Fuel Polishing System helps extend the life of on-board filters by removing contaminants from stored fuel. It can be used for continuous operation on fuel tanks, or as part of a day-tank transfer system.

Manufacturer: Parker

Availability:

6 in stock

Decatur, IL

Partner Available:

Backordered

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU P510MAM

$1,225.37/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Series Type	Cartridge FF/WS Pump
Clean Pressure Drop	0.8 psi	Weight	4.2 lb
Flow Rate	73 Gal/hour	Product Series	P-Series
Application	Fuel Polishing System	Brand	Racor
Mounting Type	Bracket Included	Depth	5.2 inch
Pump Type	12/24V DC Brushless, Continuous duty	Port Size	M16x1.5 ORB Adapters available
Bowl Type	Powder Coated Aluminum	Heat Type	None
Optional Accessories	Fitting adapters available. See Product Overview & Support Tabs	Compatible Element	R58039-2 = 2 micron<br>R58039-10 = 10 micron<br>R58039-30 = 30 mcron
Width	11.4 cm	Height	11.5 inch
For Fluid Type	Diesel / B20	Water Sensor Option	Included Stainless Steel Probe
Division	Engine Mobile Original Equipment Division

Product resources

Literature and Reference Materials

Selector Guides

Racor--P510MAM Fuel Polisher--RSL0381 (PDF)
