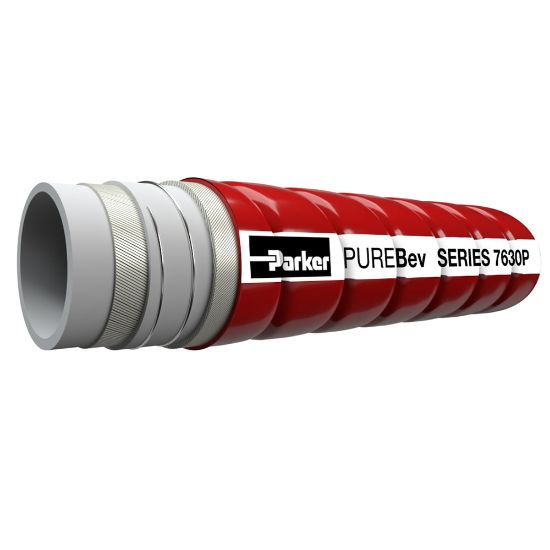

7630P-1000 - PUREBev Hose Series 7630P

PUREBev Series 7630P features our PRO cover and is designed to convey beer, wine, potable water and other food and beverage applications. Tube materials consist of premium Butyl and UHMWPE materials.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 159 days
Partner Available:	209 in stock

SKU 7630P-1000

$37.69/foot

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Meets Industry Specifications	FDA, DM, CE, 3A,MHLW, REACH, GMP
Hose O.D. (inch)	1.5	Hose I.D. (inch)	1
Application	Beverage Transfer	Vacuum Pressure Rating	90 kPa
Maximum Operating Pressure	250 psi	Weight	0.61 lb/ft
Inside Diameter	25.4 mm	Outside Diameter	38 mm
Maximum Operating Temperature	248 °F	Division	Hose Products Division
Media	Food & Beverage (Wine)	Hose Inner Tube Material	White
Application	Consumable Liquids	Minimum Burst Pressure	900 psi
Hose Reinforcement Material	Galvanized Wire Helix	Specifications Met	MHLW
Cover Material	Low Friction Material	Minimum Bend Radius	105 mm
Minimum Operating Temperature	-40 °C
