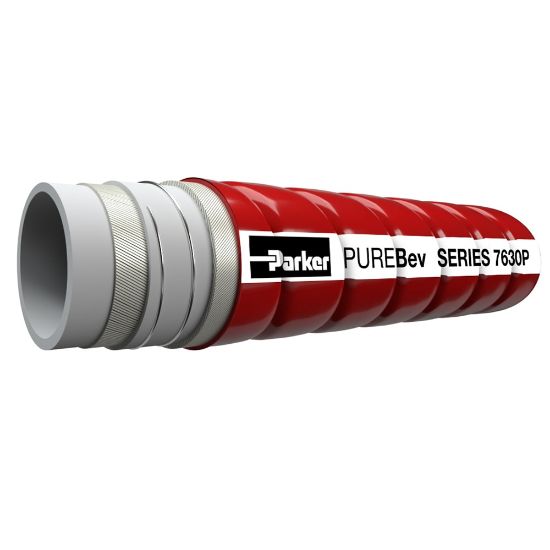

7630P-2000 - PUREBev Hose Series 7630P

PUREBev Series 7630P features our PRO cover and is designed to convey beer, wine, potable water and other food and beverage applications. Tube materials consist of premium Butyl and UHMWPE materials.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	351 in stock

SKU 7630P-2000

$49.69/foot

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Hose O.D. (inch)	2.64
Meets Industry Specifications	FDA, DM, CE, 3A,MHLW, REACH, GMP	Application	Beverage Transfer
Hose I.D. (inch)	2	Outside Diameter	67 mm
Specifications Met	MHLW	Minimum Burst Pressure	900 psi
Application	Beverage (Wine)	Hose Reinforcement Material	Synthetic Plies
Weight	2.21 kg/m	Maximum Operating Pressure	16 bar
Vacuum Pressure Rating	26.5 Inch-Hg	Inside Diameter	51 mm
Hose Inner Tube Material	Phtalates Free	Maximum Operating Temperature	120 °C
Division	Hose Products Division	Minimum Operating Temperature	-40 °F
Cover Material	Low Friction Material	Minimum Bend Radius	150 mm
Media	Food & Beverage (Consumable Liquids)

Product resources

Literature and Reference Materials

Training

Specifying Hose for Food & Beverage Applications (PDF)
