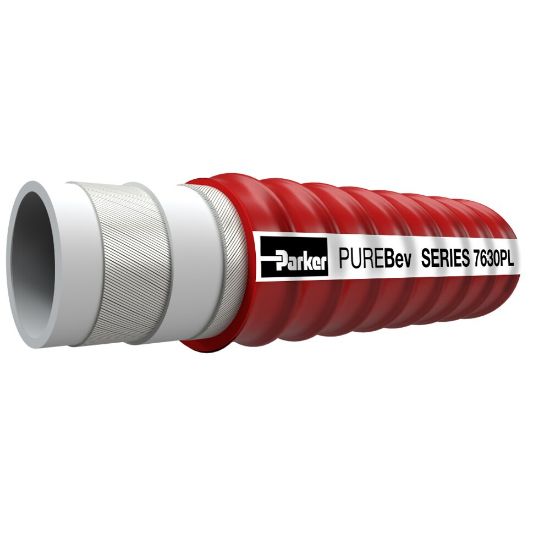

7630PL-2000 - PUREBev Hose Series 7630PL

PUREBev Series 7630PL featuring our PLUS cover confirms exceptional quality. This extra flexible, light weight delivery and suction hose is designed for non-fatty food products including beer and wine. Tube consist of premium Butyl and UHMWPE materials.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 159 days
Partner Available:	51 in stock

SKU 7630PL-2000

$59.63/foot

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	2
Vacuum Rating (inch of Hg)	26.5	Hose Inner Tube Material	Phtalates Free
Media	Food & Beverage (Wine)	Application	Beverage
Minimum Burst Pressure	30 bar	Specifications Met	GMP
Cover Material	Rubber (red outer thermoplastic helix nested within the rubber cover)	Cover Structure	Deeply Corrugated
Minimum Bend Radius	100 mm	Hose Reinforcement Material	Thermoplastic Wire Helix
Minimum Operating Temperature	-25 °C	Vacuum Pressure Rating	90 kPa
Cover Color	Red (red outer thermoplastic helix nested within the rubber cover)	Weight	1.24 lb/ft
Inside Diameter	51 mm	Maximum Operating Pressure	150 psi
Maximum Operating Temperature	248 °F	Division	Hose Products Division
