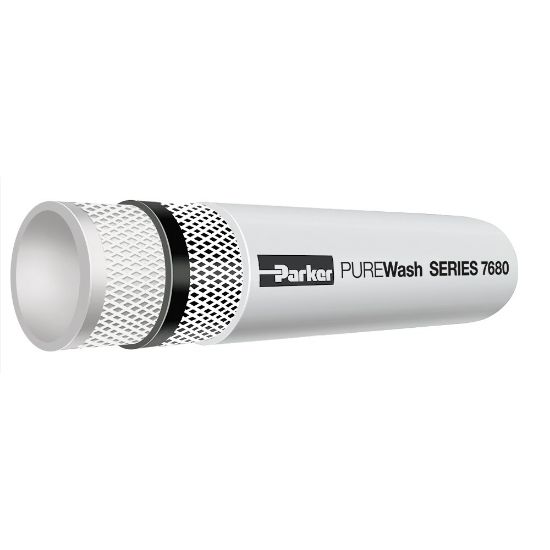

7680-8-WHT-RL - PUREWash Hose Series 7680

PUREWash Series 7680 hose can be used in virtually every type of food and beverage processing plant. The tube is FDA compliant (not to be used in food transfer) and the cover is non-marking and also available in blue for a cleaner look.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	335 in stock

SKU 7680-8-WHT-RL

$3.88/foot

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	0.5
Hose I.D. (mm)	12.7	Application	Equiment Sanitation, Preventative Maintenance
Hose O.D. (inch)	0.875	Cover Color	White
Hose O.D. (mm)	22.2	Standard Package Quantity	500 ft reel
Maximum Working Temperature (C)	100	Maximum Working Temperature (F)	212
Minimum Working Temperature (C)	-40	Minimum Working Temperature (F)	-40
Cover Color	White	Inside Diameter	0.500 inch
Weight	0.11 kg/m	Maximum Operating Pressure	300 psi
Outside Diameter	22.2 mm	Maximum Operating Temperature	212 °F
Hose Inner Tube Material	Smooth	Compatible Fitting	HY Series
Division	Hose Products Division	Cover Material	Ethylene Propylene Diene Monomer (EPDM)
Media	Food & Beverage (Food & Beverage Processing Plants)	Application	Equipment Sanitation
Hose Reinforcement Material	4 Plies	Minimum Bend Radius	127 mm
Specifications Met	n/a	Minimum Operating Temperature	-40 °F
