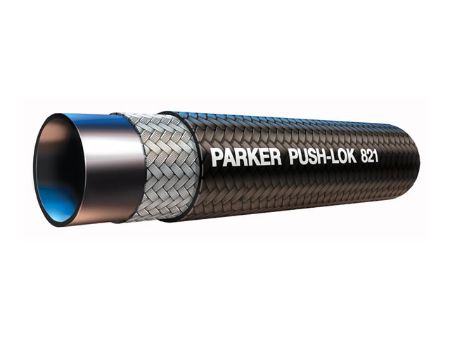

Push-Lok Higher Pressures Multipurpose Hose 250-350 PSI - 821 Hose
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's 821 hose is a higher pressure hose with a pressure range of 250-350 PSI, and is amongst the Push-Lok multipurpose hose line which features the widest fluid compatibility, application range and size range in the industry. The 821 hose is designed with the unique seal of Push-Lok ensuring a reliable, durable, leak-free service. Sizes range from ¼” to ¾” in diameter with the fullest range of color-coding to benefit operations.
Markets:
• Construction
• Utility Equipment
• Machine Tool
• Ground Support Equipment
• Industrial
• Automotive
Features/Benefits:
• 250-350 PSI working pressure in different sizes
• Easy assemblies that can be made in seconds, saving valuable time and cost
• Organization with Parker's exclusive color-coding system
• Unique seal for a durable leak-free service
Applications:
• Petroleum base hydraulic fluid and lubricating oils
• Pneumatic
• Antifreeze solutions
Compatible Fittings:
• 82 series fittings
Read More...Markets:
• Construction
• Utility Equipment
• Machine Tool
• Ground Support Equipment
• Industrial
• Automotive
Features/Benefits:
• 250-350 PSI working pressure in different sizes
• Easy assemblies that can be made in seconds, saving valuable time and cost
• Organization with Parker's exclusive color-coding system
• Unique seal for a durable leak-free service
Applications:
• Petroleum base hydraulic fluid and lubricating oils
• Pneumatic
• Antifreeze solutions
Compatible Fittings:
• 82 series fittings
| Action | SKU | Availability | Partner Available | Price | UOM | UOM | Hose I.D. (size) | Weight | Maximum Operating Pressure | Outside Diameter | Nominal Hose Inside Diameter | Inside Diameter | Specifications Met | Application | Division | Vacuum Pressure Rating | Media | Design Factor | Hose Inner Tube Material | Compatible Fitting | Maximum Operating Temperature | Minimum Operating Temperature | Hose Reinforcement Material | Minimum Bend Radius | Material | Working Pressure | Inner Diameter | Pkg Qty/UOM | Pkg Qty | Mating Fitting Series | Parker Group | Inch/Metric | Parker Division | Inner Diameter | Inner Diameter Inch/mm | Material | Hose Pressure Range | Working Pressure Range | Trade Name | Hose Category | Mating End Fitting Series | Application | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 821-10 | Backordered | 503 in stock | $11.86/foot | FT | FT | -10 | 0.28 kg/m | 1.7 MPa | 0.910 inch | 16 mm | 5/8 inch | n/a | Pneumatics | Hose Products Division | 28 Inch-Hg | Lubricants | 4:1 | Synthetic Rubber | 82 Series | 70 °C (Air) | -40 °C (Oil) | 1 Braid of Fiber | 152 mm | Rubber | 250 PSI (17 bar) | 0.625 Inch | 200 FT | 200 | 82 | Fluid Connector | Inch | Hose Products | 0.625 Inch | Inch | Rubber | Low | 250 to 499 PSI (17 to 34 bar) | Push-Lok | Air & Multipurpose | 82 | Multipurpose | 821 | |
| 821-12 | Backordered | 1596 in stock | $16.02/foot | FT | FT | -12 | 0.31 kg/m | 1.7 MPa | 1.030 inch | 19 mm | 19 mm | n/a | Lubricating Oils | Hose Products Division | 28 Inch-Hg | Petroleum Hydraulic Fluids | 4:1 | Synthetic Rubber | 82 Series | 158 °F (Air) | -40 °C (Oil) | 1 Braid of Fiber | 7 inch | Rubber | 250 PSI (17 bar) | 0.75 Inch | 150 FT | 150 | 82 | Fluid Connector | Inch | Hose Products | 0.75 Inch | Inch | Rubber | Low | 250 to 499 PSI (17 to 34 bar) | Push-Lok | Air & Multipurpose | 82 | Multipurpose | 821 | |
| 821-4 | Backordered | 84 in stock | $8.40/foot | FT | FT | -4 | 0.09 kg/m | 350 psi | 12.7 mm | 6 mm | 6.3 mm | n/a | Pneumatics | Hose Products Division | 711 mm-Hg | Lubricants | 4:1 | Synthetic Rubber | 82 Series | 100 °C (Oil) | -40 °C (Oil) | 1 Braid of Fiber | 64 mm | Rubber | 350 PSI (20 bar) | 0.25 Inch | 350 FT | 350 | 82 | Fluid Connector | Inch | Hose Products | 0.25 Inch | Inch | Rubber | Low | 250 to 499 PSI (17 to 34 bar) | Push-Lok | Air & Multipurpose | 82 | Multipurpose | 821 | |
| 821-6 | Backordered | 2079 in stock | $9.19/foot | FT | FT | -6 | 0.13 kg/m | 2.1 MPa | 0.630 inch | 10 mm | 3/8 inch | n/a | Lubricating Oils | Hose Products Division | 28 Inch-Hg | Air (Compressed Air with traces of Oil) | 4:1 | Synthetic Rubber | 82 Series | 185 °F (Water) | -40 °C (Oil) | 1 Braid of Fiber | 76 mm | Rubber | 300 PSI (20 bar) | 0.375 Inch | 400 FT | 400 | 82 | Fluid Connector | Inch | Hose Products | 0.375 Inch | Inch | Rubber | Low | 250 to 499 PSI (17 to 34 bar) | Push-Lok | Air & Multipurpose | 82 | Multipurpose | 821 | |
| 821-8 | Backordered | 3211 in stock | $9.85/foot | FT | FT | -8 | 0.18 kg/m | 2.1 MPa | 19.8 mm | 12 mm | 12.5 mm | n/a | Pneumatics | Hose Products Division | 28 Inch-Hg | Air (Compressed Air with traces of Oil) | 4:1 | Synthetic Rubber | 82 Series | 158 °F (Air) | -40 °C (Oil) | 1 Braid of Fiber | 5 inch | Rubber | 300 PSI (20 bar) | 0.5 Inch | 350 FT | 350 | 82 | Fluid Connector | Inch | Hose Products | 0.5 Inch | Inch | Rubber | Low | 250 to 499 PSI (17 to 34 bar) | Push-Lok | Air & Multipurpose | 82 | Multipurpose | 821 |
