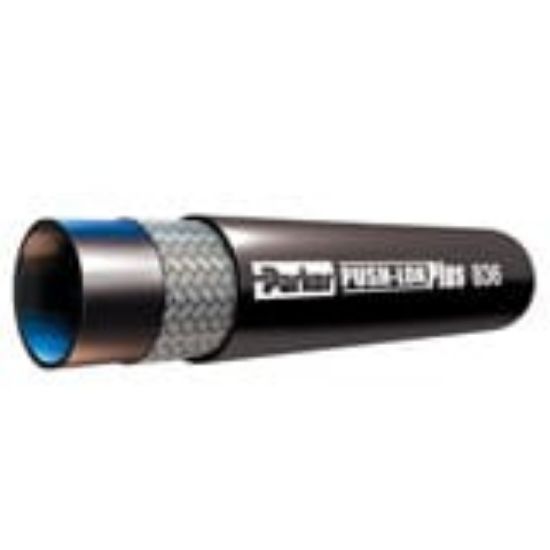

836-6-RL - Push-Lok Plus High Temperature Multipurpose Hose 300-400 PSI – 836 Hose

Name: 836-6-RL - Push-Lok Plus High Temperature Multipurpose Hose 300-400 PSI – 836 Hose
SKU: 836-6-RL
Price: 7.68 USD
Availability: InStock

Heat-resistant Push-Lok Plus 836 hoses accommodate higher working pressures and higher temperatures than other Push-Lok Plus hoses while offering the same compatibility features.

Manufacturer: Parker

Availability:

559 in stock

Peoria, IL	450
Decatur, IL	65
Kansas City, KS	44

Partner Available:

7995 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 836-6-RL

$7.68/foot

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (size)	-6
Color	Blue	Cover Material	PKR® Rubber
Media	Petroleum Hydraulic Fluids	Design Factor	n/a
Nominal Hose Inside Diameter	10 mm	Application	Petroleum Base Hydraulic Fluids
Minimum Operating Temperature	-55 °F (Oil)	Minimum Bend Radius	3 inch
Hose Reinforcement Material	1 Braid of Fiber	Specifications Met	n/a
Maximum Operating Pressure	400 psi	Weight	0.16 kg/m
Inside Diameter	10 mm	Outside Diameter	0.630 inch
Vacuum Pressure Rating	711 mm-Hg	Size	-6
Maximum Operating Temperature	302 °F (Oil)	Compatible Fitting	HY Series
Hose Inner Tube Material	PKR® Rubber	Division	Hose Products Division

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

FCG HPD REACH Annex XIV (PDF)
