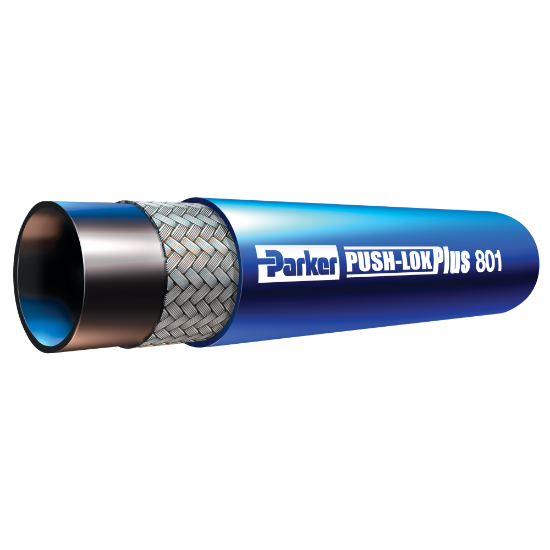

801-4-BLU-RL - Push-Lok Plus Multipurpose Hose 200-350 PSI – 801 Hose

Name: 801-4-BLU-RL - Push-Lok Plus Multipurpose Hose 200-350 PSI – 801 Hose
SKU: 801-4-BLU-RL
Price: 2.82 USD
Availability: InStock

Parker's 801 hose has a pressure range of 200-350 PSI, and is amongst the Push-Lok Plus multipurpose hose line which features the widest fluid compatibility, application range and size range in the industry.

Manufacturer: Parker

Availability:

2536 in stock

Decatur, IL	1,007
Olivette, MO	632
Wichita, KS	529
Springfield, MO	146
Kansas City, KS	110
TOPEKA, KS	110

Partner Available:

28623 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 801-4-BLU-RL

$2.82/foot

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Color	Blue
Hose I.D. (size)	-4	Media	Petroleum Hydraulic Fluids
Design Factor	4:1	Compatible Fitting	82 Series
Maximum Operating Temperature	185 °F (Water)	Hose Inner Tube Material	Synthetic Rubber
Size	-4	Minimum Bend Radius	65 mm
Hose Reinforcement Material	1 Braid of Fiber	Specifications Met	n/a
Minimum Operating Temperature	-40 °C (Oil)	Cover Material	Synthetic Rubber
Nominal Hose Inside Diameter	6 mm	Inside Diameter	6.3 mm
Weight	0.13 kg/m	Maximum Operating Pressure	350 psi
Outside Diameter	12.7 mm	Application	Antifreeze Solutions
Division	Hose Products Division	Vacuum Pressure Rating	711 mm-Hg
