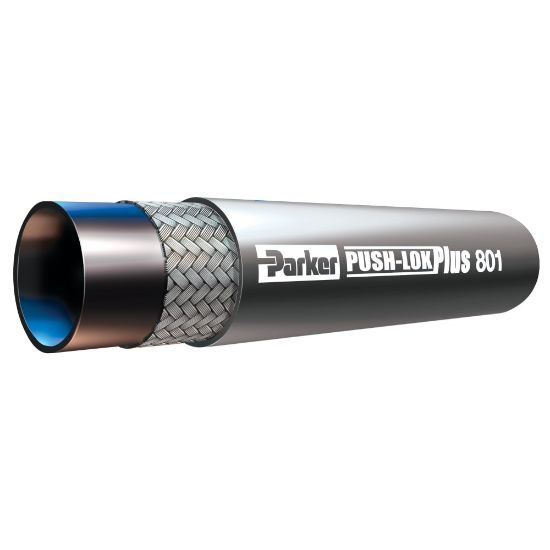

801-8-GRA-RL - Push-Lok Plus Multipurpose Hose 200-350 PSI – 801 Hose

Name: 801-8-GRA-RL - Push-Lok Plus Multipurpose Hose 200-350 PSI – 801 Hose
SKU: 801-8-GRA-RL
Price: 4.07 USD
Availability: InStock

Parker's 801 hose has a pressure range of 200-350 PSI, and is amongst the Push-Lok Plus multipurpose hose line which features the widest fluid compatibility, application range and size range in the industry.

Manufacturer: Parker

Availability:

1190 in stock

Springfield, MO	1,106
Olivette, MO	84

Partner Available:

11373 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 801-8-GRA-RL

$4.07/foot

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (size)	-8
Color	Gray	Division	Hose Products Division
Size	-8	Maximum Operating Temperature	158 °F (Air)
Compatible Fitting	HY Series	Media	Coolants
Design Factor	4:1	Hose Inner Tube Material	Synthetic Rubber
Specifications Met	n/a	Application	Antifreeze Solutions
Minimum Operating Temperature	-40 °C (Oil)	Minimum Bend Radius	5 inch
Hose Reinforcement Material	1 Braid of Fiber	Cover Material	Synthetic Rubber
Weight	0.18 lb/ft	Vacuum Pressure Rating	28 Inch-Hg
Maximum Operating Pressure	300 psi	Nominal Hose Inside Diameter	12 mm
Inside Diameter	12.5 mm	Outside Diameter	19.8 mm
