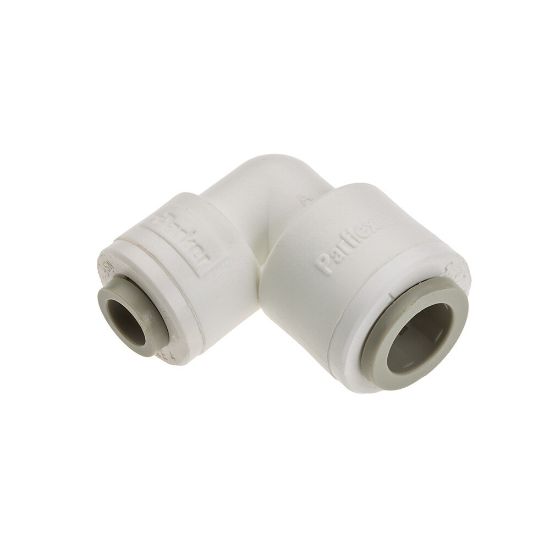

PP6EU4-MG - Push-to-Connect all plastic FDA compliant fitting, Parker TrueSeal

Parker's TrueSeal push-in tube fittings are manufactured from FDA compliant materials and are NSF-51 listed for contact with food. Gray acetal fittings meet NSF-61 requirements for potable water.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 40 days
Partner Available:	Backordered

SKU PP6EU4-MG

$5.07/each

Products specifications

Attribute name	Attribute value
UOM	EA	Shape	Elbow 90°
Color	n/a	Connection 2 Size	1/4"
Connection 1 Type	Push-to-Connect	Connection 2 Type	Push-to-Connect
Body Material	Polypropylene	Product Style	Metal Gripper
Connection 1 Size	3/8"	Specifications Met	FDA
Minimum Operating Temperature	0 °F	Maximum Operating Temperature	225 °F
Seal Material	EPDM (O-Ring)	Body Material	Polypropylene
Division	Fluid System Connectors Division	Dimensional Weight	0.1781 lb
Maximum Operating Pressure	150 psi
