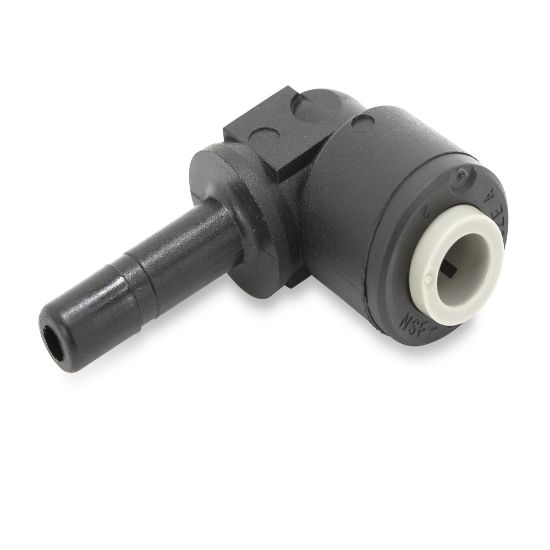

PPB8TEU8-MG - Push-to-Connect all plastic FDA compliant fitting, Parker TrueSeal

Parker's TrueSeal push-in tube fittings are manufactured from FDA compliant materials and are NSF-51 listed for contact with food. Gray acetal fittings meet NSF-61 requirements for potable water.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU PPB8TEU8-MG

$4.20/each

Products specifications

Attribute name	Attribute value
UOM	EA	Shape	Elbow 90°
Configuration	Tube to Tube Stem	Color	Black
Connection 1 Size	1/2"	Connection 2 Type	Tube Stem
Connection 1 Type	Push-to-Connect	Body Material	Polypropylene
Connection 2 Size	1/2"	Minimum Operating Temperature	-18 °C
Specifications Met	NSF/ANSI 51	Seal Material	EPDM (O-Ring)
Maximum Operating Temperature	225 °F	Division	Fluid System Connectors Division
Maximum Operating Pressure	10 bar	Body Material	Polypropylene
