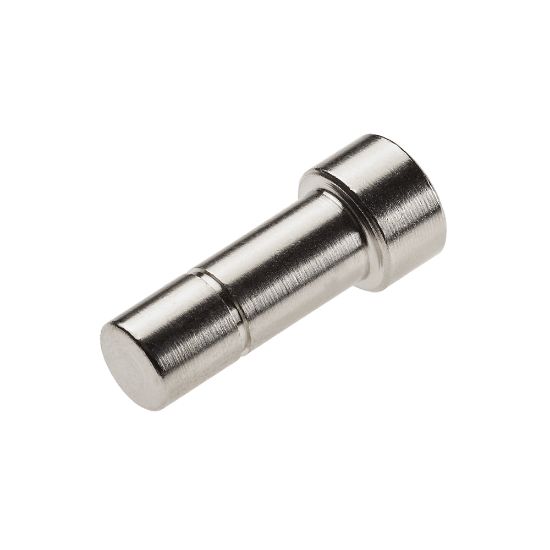

139PLP-8M - Push-to-Connect Nickel Plated Instant Fittings - Prestolok PLP Metal

Parker's Prestolok PLP push-to-connect fittings offer improved throughput, increased efficiency, smaller footprints, faster assembly and leak-reducing innovation.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 40 days
Partner Available:	Backordered

SKU 139PLP-8M

$3.21/each

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Size	8 mm
Product Style	Plug	Configuration	Tube to Tube
Connection 1 Type	Push-to-Connect	Division	Fluid System Connectors Division
Industry	Material Handling	Vacuum Pressure Rating	28 Inch-Hg
Body Material	Brass, Nickel-plated	Region of Origin	United States
Maximum Operating Pressure	300 psi	Maximum Operating Temperature	200 °F
Seal Material	Nitrile	Tube Material	Nylon
Gripping Ring Material	Stainless Steel	For Fluid Type	Inert Gases
Division	Fluid System Connectors Division	Hex Size	n/a
Minimum Operating Temperature	-17.7 °C	Technology	Fluid & Gas Handling
Materials of Construction	PVDF (Button)	Application	Automotive
Brand	Parker	Specifications Met	UL 94 V-0
