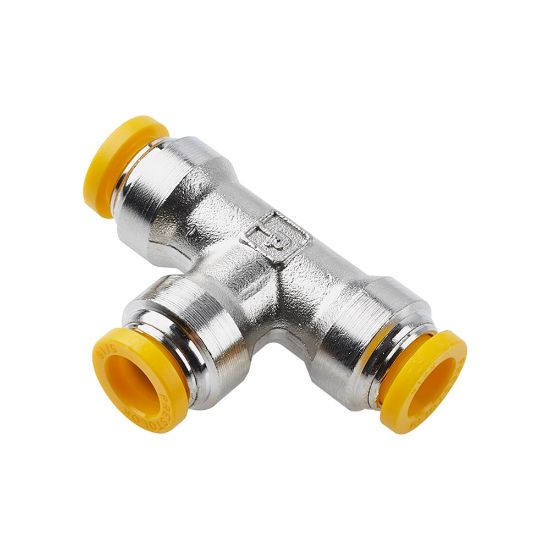

164PLP-12M - Push-to-Connect Nickel Plated Instant Fittings - Prestolok PLP Metal

Parker's Prestolok PLP push-to-connect fittings offer improved throughput, increased efficiency, smaller footprints, faster assembly and leak-reducing innovation.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 40 days
Partner Available:	2 Limited Stock

SKU 164PLP-12M

$23.82/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Size	12 mm
Connection 2 Size	12 mm	Configuration	Tube to Tube
Connection 1 Type	Push-to-Connect	Shape	Union Tee
Connection 2 Type	Push-to-Connect	Connection 3 Size	12 mm
Connection 3 Type	Push-to-Connect	Tube Material	Polyethylene
Technology	Fluid & Gas Handling	Maximum Operating Temperature	200 °F
For Fluid Type	Oil	Seal Material	Nitrile
Division	Fluid System Connectors Division	Gripping Ring Material	Stainless Steel
Minimum Operating Temperature	0 °F	Hex Size	n/a
Brand	Parker	Region of Origin	United States
Maximum Operating Pressure	300 psi	Materials of Construction	PVDF (Button)
Application	Packaging	Specifications Met	UL 94 V-0
Industry	Material Handling	Body Material	Brass, Nickel-plated
Vacuum Pressure Rating	28 Inch-Hg	Division	Fluid System Connectors Division
