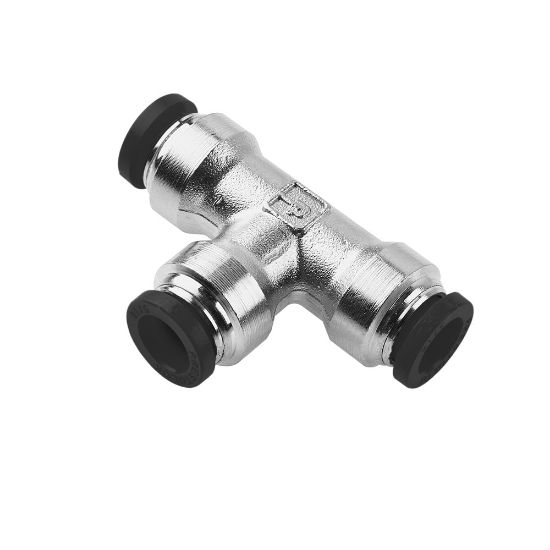

164PLP-3 - Push-to-Connect Nickel Plated Instant Fittings - Prestolok PLP Metal

Parker's Prestolok PLP push-to-connect fittings offer improved throughput, increased efficiency, smaller footprints, faster assembly and leak-reducing innovation.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 31 days
Partner Available:	94 in stock

SKU 164PLP-3

$29.66/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Configuration	Tube to Tube
Connection 1 Type	Push-to-Connect	Shape	Union Tee
Connection 1 Size	3/16"	Connection 2 Size	3/16"
Connection 2 Type	Push-to-Connect	Connection 3 Size	3/16"
Connection 3 Type	Push-to-Connect	Division	Fluid System Connectors Division
Maximum Operating Temperature	200 °F	For Fluid Type	Oil
Industry	Material Handling	Division	Fluid System Connectors Division
Technology	Fluid & Gas Handling	Seal Material	Nitrile
Gripping Ring Material	Stainless Steel	Tube Material	Polypropylene
Specifications Met	UL 94 V-0	Brand	Parker
Application	Automotive	Hex Size	n/a
Minimum Operating Temperature	0 °F	Maximum Operating Pressure	20.6 bar
Vacuum Pressure Rating	28 Inch-Hg	Body Material	Brass, Nickel-plated
Region of Origin	United States	Materials of Construction	PVDF (Button)
