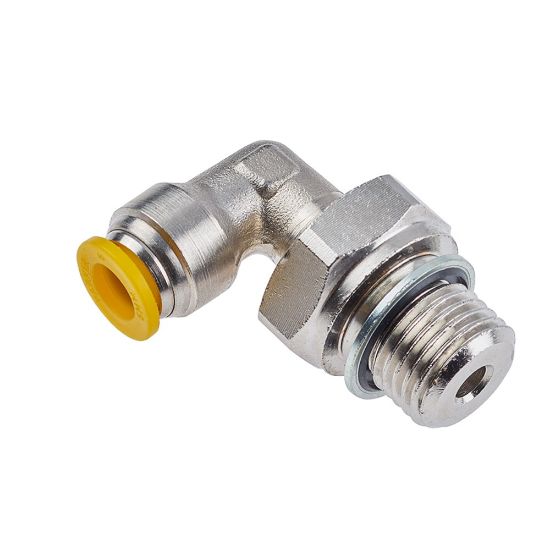

169PLP-6M-2G - Push-to-Connect Nickel Plated Instant Fittings - Prestolok PLP Metal

Parker's Prestolok PLP push-to-connect fittings offer improved throughput, increased efficiency, smaller footprints, faster assembly and leak-reducing innovation.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 40 days
Partner Available:	Backordered

SKU 169PLP-6M-2G

$6.41/each

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Size	6 mm
Connection 2 Size	1/8"	Connection 1 Type	Push-to-Connect
Configuration	Tube to Pipe	Shape	Elbow 90° - Swivel
Connection 2 Type	Male BSPP	Division	Fluid System Connectors Division
Industry	Semiconductor	Maximum Operating Pressure	300 psi
Body Material	Brass, Nickel-plated	Vacuum Pressure Rating	28 Inch-Hg
Region of Origin	United States	Seal Material	Nitrile
Gripping Ring Material	Stainless Steel	Maximum Operating Temperature	93.3 °C
For Fluid Type	Oil	Division	Fluid System Connectors Division
Minimum Operating Temperature	0 °F	Hex Size	9/16 inch
Tube Material	Polyethylene	Technology	Pneumatics
Materials of Construction	PVDF (Button)	Application	Automotive
Specifications Met	UL 94 V-0	Brand	Parker
