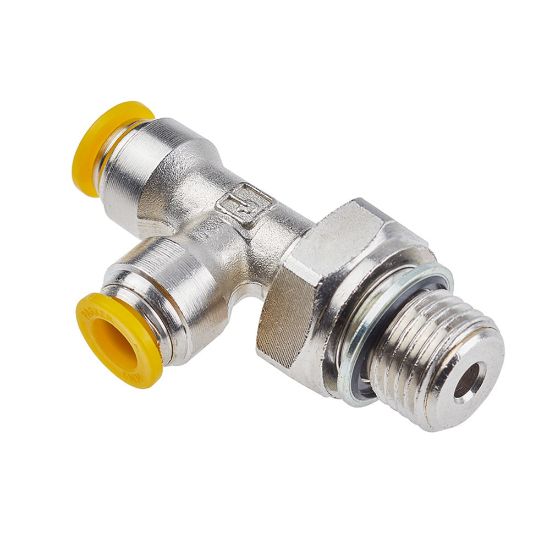

171PLP-4M-2G - Push-to-Connect Nickel Plated Instant Fittings - Prestolok PLP Metal

Parker's Prestolok PLP push-to-connect fittings offer improved throughput, increased efficiency, smaller footprints, faster assembly and leak-reducing innovation.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 40 days
Partner Available:	Backordered

SKU 171PLP-4M-2G

$14.05/each

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Size	4 mm
Connection 2 Size	1/8"	Connection 1 Type	Push-to-Connect
Connection 3 Size	4 mm	Connection 3 Type	Push-to-Connect
Configuration	Tube to Pipe	Connection 2 Type	Male BSPP
Shape	Run Tee - Swivel	Minimum Operating Temperature	0 °F
Brand	Parker	Specifications Met	UL 94 V-0
Hex Size	9/16 inch	Body Material	Brass, Nickel-plated
Vacuum Pressure Rating	28 Inch-Hg	Region of Origin	United States
Maximum Operating Pressure	20.6 bar	Materials of Construction	PVDF (Button)
Application	Automotive	For Fluid Type	Oil
Division	Fluid System Connectors Division	Division	Fluid System Connectors Division
Industry	Material Handling	Tube Material	Polypropylene
Technology	Fluid & Gas Handling	Maximum Operating Temperature	93.3 °C
Seal Material	Nitrile	Gripping Ring Material	Stainless Steel
