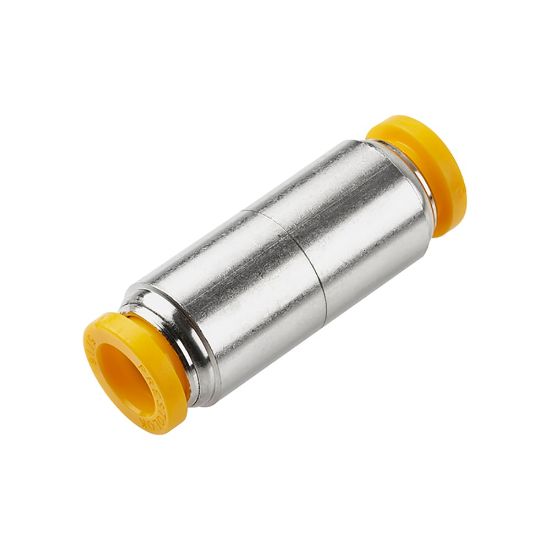

62PLP-6M-8M - Push-to-Connect Nickel Plated Instant Fittings - Prestolok PLP Metal

Parker's Prestolok PLP push-to-connect fittings offer improved throughput, increased efficiency, smaller footprints, faster assembly and leak-reducing innovation.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 40 days
Partner Available:	Backordered

SKU 62PLP-6M-8M

$9.55/each

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Size	8 mm
Configuration	Tube to Tube	Connection 1 Type	Push-to-Connect
Connection 2 Size	6 mm	Connection 2 Type	Push-to-Connect
Shape	Union - Unequal	Division	Fluid System Connectors Division
For Fluid Type	Inert Gases	Industry	Industrial Manufacturing Equipment
Division	Fluid System Connectors Division	Gripping Ring Material	Stainless Steel
Maximum Operating Temperature	200 °F	Seal Material	Nitrile
Tube Material	Polypropylene	Technology	Fluid & Gas Handling
Hex Size	n/a	Specifications Met	UL 94 V-0
Minimum Operating Temperature	0 °F	Brand	Parker
Application	Air Lines	Materials of Construction	PVDF (Button)
Body Material	Brass, Nickel-plated	Region of Origin	United States
Maximum Operating Pressure	20.6 bar	Vacuum Pressure Rating	28 Inch-Hg
