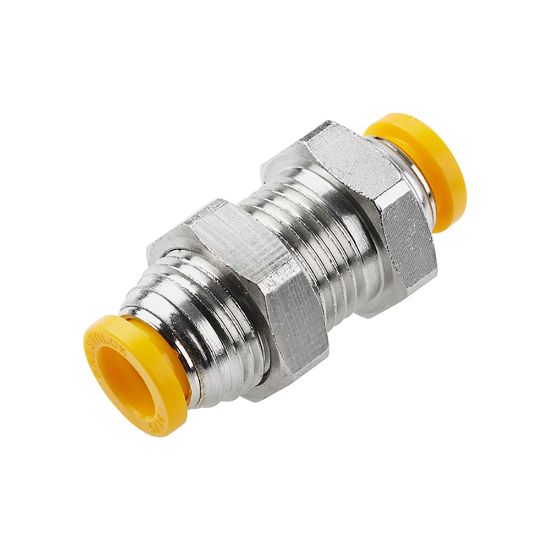

62PLPBH-6M - Push-to-Connect Nickel Plated Instant Fittings - Prestolok PLP Metal

Parker's Prestolok PLP push-to-connect fittings offer improved throughput, increased efficiency, smaller footprints, faster assembly and leak-reducing innovation.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 40 days
Partner Available:	Backordered

SKU 62PLPBH-6M

$11.04/each

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Size	6 mm
Configuration	Tube to Tube	Connection 1 Type	Push-to-Connect
Connection 2 Size	6 mm	Connection 2 Type	Push-to-Connect
Shape	Union - Bulkhead	Division	Fluid System Connectors Division
Industry	Automotive	Division	Fluid System Connectors Division
For Fluid Type	Oil	Maximum Operating Temperature	200 °F
Seal Material	Nitrile	Tube Material	Polypropylene
Gripping Ring Material	Stainless Steel	Technology	Pneumatics
Minimum Operating Temperature	0 °F	Hex Size	11/16 inch
Application	Air Lines	Specifications Met	UL 94 V-0
Brand	Parker	Materials of Construction	PVDF (Button)
Region of Origin	United States	Maximum Operating Pressure	300 psi
Body Material	Brass, Nickel-plated	Vacuum Pressure Rating	28 Inch-Hg
